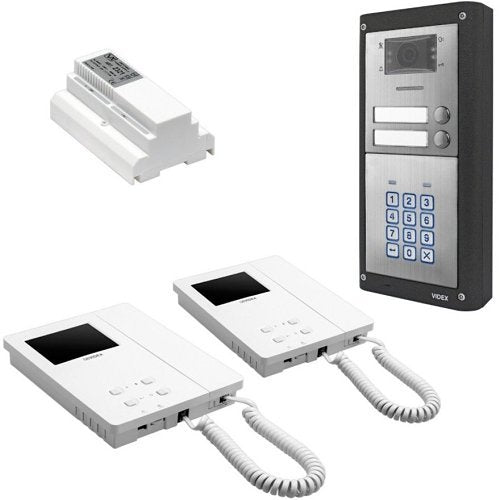

Videx ESVKC-2S/6286 video kit, 4"

Please note: this is a non-returnable item (excluding faulty goods)

Videx ESVKC-2S/6286 is a video kit from the 6200 range.

The 4000 series range of "True" 2 wire colour videokits with codelock (ESVKC series), are available with 1 or 2 buttons and as surface or flush colour videokits. The flexible design allows for up to a total of 4 videophones per call button with the facility for intercommunication between the videophones in the same apartment or intercommunication between videophones in different apartments. Each videokit is available with a choice of 5 different videophone options from the 6286 videophone or the 6388, 6488 and 6788 or 6788BL series hands free monitors.

Installations couldn't be easier thanks to the common 2 wire BUS system (VX2300) using two non-polarity twisted pair wires (the system does not require coaxial cable). The videokits are ideal for small scale "1-to-1" installations or low-rise apartment blocks (up to a total of 12 apartments max. with the inclusion of additional 4000 series button expansion modules), but can also be expanded up to a maximum of 8 entrances where additional 2301N multiple entrance switchers are required. Other key features of the videokit include - adjustable call tone, conversation time and microphone and speaker volume adjustments, selectable camera recall including external camera input.

The combined speaker and camera module (4384-1 or 4384-2) entry panel has a built-in colour camera with white illumination LED's that provides the best quality picture in any lighting condition. It also has a lock release relay (C, NO and NC) with selectable capacitor discharge, push to exit input, call progress reassurance tones and DDA compliant call progress LED's - BUSY, CALL, SPEAK and DOOR OPEN. The ESVKC videokits also incorporate a 4901 codelock module which has 3 programmable access codes, 3 relay contact outputs (C, NO and NC) with push to exit inputs for relays 1 and 2 only.

The relays can be programmed from 1-99 seconds or programmed with 00 for latching output.Flush videokits - Surface videokits - All the above videokits are supplied with a 2322 power supply BUS converter.

Key features

• Surface or flush videokits with 1 or 2 buttons available (expandable up to 12 buttons)
• Videokits available with either 6200 series, 6300 series, 6400 series or 6700 series videophones
• Expandable up to 8 entrances (with additional 2301N multiple entrance switchers)
• Call a total of up to 4 videophones per call button
• Intercommunication between videophones in same apartment or between different apartments
• DDA compliant call progress LED's and reassurance tones
• High quality colour camera with 4 illumination LED's
• Selectable camera recall facility (including external camera input)
• Microphone, speaker volume and balance adjustments
• 4901 codelock module with 3 programmable codes, 3 dry contact relays with blue back-lit numeric keypad

If you are matching this to an existing installation, work from the ESVKC-2S/6286 part number rather than the description.
