Videx IPVKC-1S video kit, Surface Mount

Please note: this is a non-returnable item (excluding faulty goods)

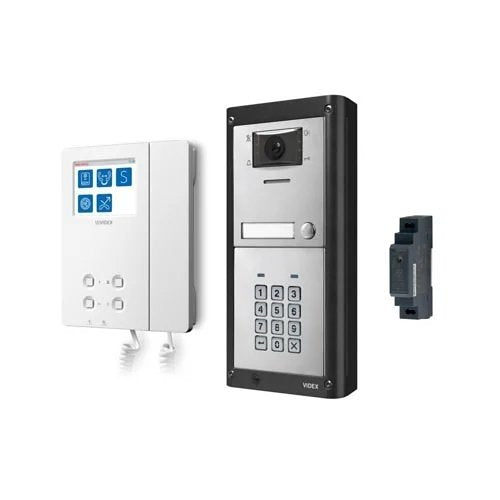

Videx IPVKC-1S is a video kit.

Introducing a new range of IPure intercom products for communication via a Local Area Network (LAN). Using cloud services, communication across the internet can also be achieved with the use of tablets or smartphones running the Videx CloudNected App. The system is also available as a kit which includes the entrance panel, videophone and power supply.

The 4000 Series modular entrance panel can be expanded from 1 up to 42 call buttons and include any of the extensive range of 4000 Series modules available. It can be surface or flush mounted and is available in a matt 316 grade stainless steel finish or gun metal grey finish. The IP video entry panel includes a wide angle colour camera (with an 80° vertical viewing angle and 170° horizontal viewing angle), call progress LED's and an input for a second camera.

There are two relay outputs and two free inputs which can be used for a variety of functions such as door/gate release and activation of auxiliary functions. The videokit also includes a 4901 codelock which has 3 relays and allows for 3 codes (1 code per relay). Each relay output can be programmed from 1-99 seconds or set to 00 for latching.

It also features two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Access codes can be between 4-8 digits in length and it incorporates blue backlit key buttons. The videophone is in the popular 6200 series design and incorporates a 3.5" touch screen display for both viewing visitors and navigating the function menus.

The videophone is wall mountable and an optional desk kit is also available. Power options include PoE or a 12Vdc power supply, additional input/outputs are included for auxiliary functions. Additional system features include a call log with picture capture of the caller, intercommunication between devices in the same apartment or others and up to 16 videophones per apartment.Videokits - The 4000 series videokits listed above are compatible with the full range of 4000 series surface and flush back boxes and rainshieldsVideophone and PSU - .

Key features

• Call progress LED's (4: call, busy, speak and door open)
• Expandable up to 42 call buttons (4000 series modular)
• Expandable up to 40 call buttons (vandal resistant series)
• Communication via LAN or private network and across a public network (internet) using the Videx CloudNected App
• Videx CloudNected App available for tablets and smartphones
• 2x relay outputs and 2x PTE inputs
• External Camera input
• Wide angle camera as standard
• 3.5" 6200 series colour videophone with touch screen display and OSD menus
• POE or 12Vdc powered videophone

If you are matching this to an existing installation, work from the IPVKC-1S part number rather than the description.
