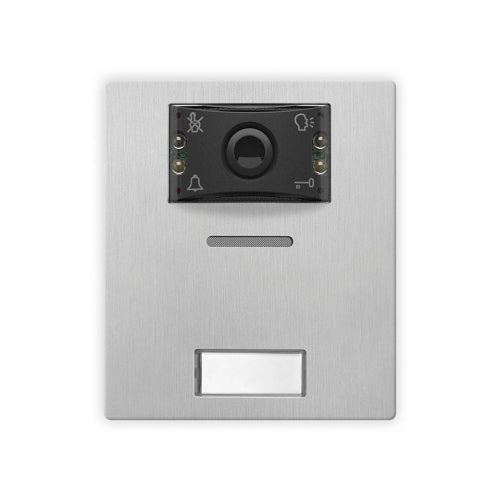

Videx 4534X-0/M video module

Free Delivery
£ 862 98
(Incl. VAT) RRP: £1,035.58
Save £172.60

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Videx 4534X-0/M is a video module from the 4000 range.

4000 Series 0 buttons audio/video module for IPure system including 1/4" CMOS colour autoiris video camera with 3.3V/lux-sec at 550nm (min 0.1 lux) sensitivity and 1280x720 (720p/1Mpx) / 640x480(VGA) / 352x288 (CIF) / 320x240(QVGA) / 176x144(QCIF) resolution, frame rate at 30ips. Wide angle view (V80°x170°H). H.264/H.263 +/H.263 video codec, RTP/RTSP video protocol.

4 LED white light for night vision. 1 integrated microphone, 1 integrated 8Ω/2W speaker, 1W class D amplifier. Full-duplex audio (AEC) feature with digital noise/disturbance reduction.

G711 µ-law/A-law audio codec, Videx IPure/RTP audio protocol. Sampling frequency 8kHz. Integrated RFID proximity reader (125kHz, EM4100/EM4102) for use of up to 10,000 proximity keys Cod.

955/T or ISO3 cards, the key configuration takes place through the PC using IPure Wizard software. Wiegand interface (34 programmable bits). IDC connector for connection via flat cable (supplied) with other optional modules (maximum 8 modules for a total of 42 buttons).

4 LEDs for visual alert of system status- busy, call in progress, open communication and open door. Acoustic alert for the visually impaired- open communication and open door. Configurable programming of door opening time and conversation.

2 C-NO-NC clean contact series relays (max 24V AC/DC - 2A), 2 standard programmable inputs (PTE). 1 RS-485 bus port. Adjustable microphone and speaker levels.

Blue LED information card backlighting. Microphone to be housed in the specific compartment of the module holder frames that allows for better sound output even in noisy environments, also eliminating any Larsen effect issues. Videx IPure/CloudNected proprietary protocol.

Multi-compatibility with protocols- SIP 2.0 (UDP), 802.1x, RTP, RTSP, HTTP. Satin-finished AISI 316 stainless steel plate (marine grade) that provides durability in installations subject to atmospheric agents and in the vicinity of marine environments. Vandal resistant plate with IK07 and IP65 protection rating.

RJ45 10/100 BASE-TX LAN Port with Auto-MDIX, Cat-5 or higher recommended cable. Simplified device configuration through IPure Wizard software. Dimensions- 103x120x43mm.

1 module.

Key features

  • IDC connector
  • IK07 vandal resistant plate
  • Intergrated RFID reader
  • IP65 protection rating
  • PoE power supply
  • Wide angle camera

If you are matching this to an existing installation, work from the 4534X-0/M part number rather than the description.

£ 862 98
RRP: £1,035.58 Save £172.60
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£862.98 Incl. VAT £1,035.58
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Technical Details
Specifications
Brand Name
Videx
Manufacturer Part Number
4534X-0/M
Product Series
4000
Specifications

Specifications

Brand Name Videx
Manufacturer Part Number 4534X-0/M
Product Series 4000

Videx 4534X-0/M video module for intercoms & telephone entry

Videx 4534X-0/M video module

Who this is for

For the installer — this is the video module supplied under Videx part number 4534X-0/M. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a video module made by Videx. The part number 4534X-0/M is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this video module is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact video module I have been quoted? Check the manufacturer part number 4534X-0/M against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Not on this listing. The documents available for it named only the wider family or a different item, and a near-miss document is a wrong document.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against 4534X-0/M answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
