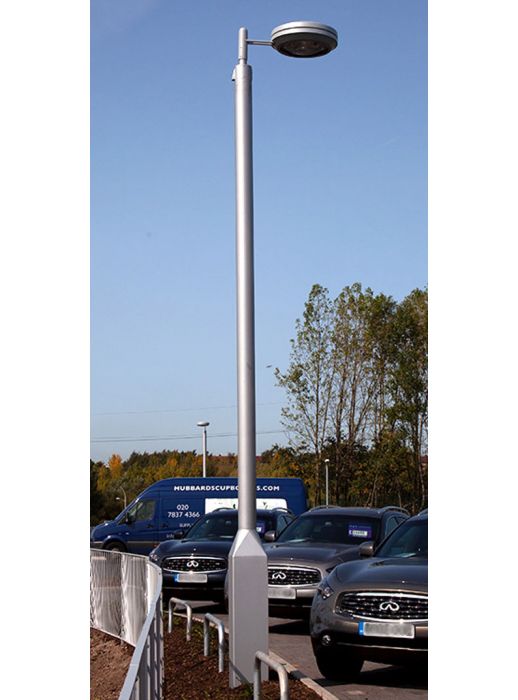

WEC CB8 Fixed Slim Cabinet Based Column, 8m Nominal Height, TC400/4 Root
About this product
The WEC CB8 is the 8mtr version of the Fixed Slim Cabinet Based Column (CB) range: a CCTV column on a TC400/4 root with an integral lockable cabinet base for housing telemetry, fibre optics, spurs etc. It is suited to urban CCTV schemes and recommended for installation in high profile and public places.
Key features
- 8mtr nominal height (heights specified are nominal and may vary)
- Uses a TC400/4 root, flange mounted TC type
- Standard pan and tilt fixing of 101.6 PCD
- Integral lockable cabinet base for housing telemetry, fibre optics, spurs etc.
- Built in cable entry and exit points with a totally concealed cable management facility
- Hot dipped galvanised finish for weather protection and low maintenance requirements
- Compatible with WEC adaptors, accessories and anti climbs
Frequently asked questions
How tall is the WEC CB8?
The CB8 is the 8mtr column in the CB range. The heights specified are nominal and may vary.
What root does the CB8 use?
It uses a TC400/4 root, which is a flange mounted TC type root. Pocket type roots are an option for restricted foundation locations.
How does a camera fit to the top of the column?
The column has a standard pan and tilt fixing of 101.6 PCD and is compatible with WEC adaptors, accessories and anti climbs.
What can go in the cabinet base?
The integral lockable cabinet base is for housing telemetry, fibre optics, spurs etc. Door options include a standard cabinet door, a high security cabinet door and a 4 point locking door (CB).
How are the cables run?
The column has built in cable entry and exit points and a totally concealed cable management facility.
What finish does it have?
A hot dipped galvanised finish for weather protection and low maintenance requirements; a RAL/colour code can also be specified when ordering.
Specifications
Specifications
| Brand | WEC |
|---|---|
| Model | CB8 |
| Manufacturer Part Number (MPN) | CB8 |
| Height | 8mtr (nominal, may vary) |
| Root | TC400/4 (flange mounted TC type root) |
| Pan and tilt fixing | 101.6 PCD |
| Cabinet | Integral lockable cabinet base |
| Cabinet size | 325mm² |
| Finish | Hot dipped galvanised |
| Cabinet door options | Standard cabinet door, high security cabinet door, 4 point locking door (CB) |
| Cable management | Built in cable entry and exit points; totally concealed |
