Xtralis by Honeywell OSE-HPW emitter, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)

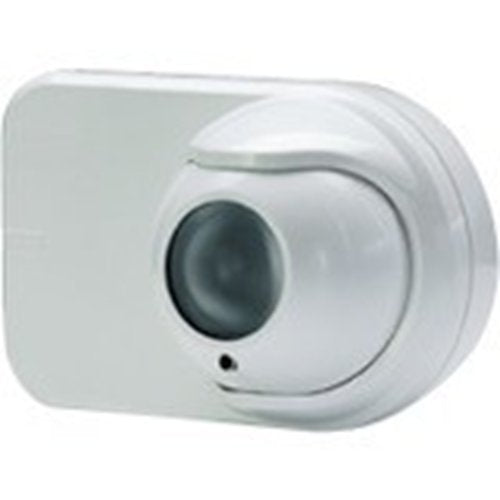

Xtralis by Honeywell OSE-HPW is an emitter from the OSID range.
Open-area Smoke Imaging Detection (OSID) by Xtralis is an innovative system for reliable, cost-effective smoke detection for large, open spaces requiring standard sensitivity detection. In its simplest configuration, OSID uses one imager, a camera-like device with a wide field of view, and a wired or battery-powered emitter roughly aligned on the opposite wall within the protected area. The emitter sends both infrared and ultraviolet coded light signals to the imager.
If the light reception is altered due to the presence of genuine smoke particles, the imager will go into alarm.
Key features
- Maximum detection range for CPR approved products is 200m (656')
- Dual wavelength LED-based smoke detection
- Optical imaging with CMOS imaging chip
- On-board event log for fault and alarm diagnostics
- High tolerance to false alarm due to building movement
- High tolerance to transient dust, steam and intrusion of solid objects
- Easy alignment with large adjustment and viewing angles
- No need for precise alignment
If you are matching this to an existing installation, work from the OSE-HPW part number rather than the description.
Specifications
Technical information
Controls/indicators
Environmental conditions
Physical characteristics
Power description
Attributes
Specifications
| Brand Name | Xtralis by Honeywell |
|---|---|
| Manufacturer Part Number | OSE-HPW |
| Product Series | OSID |
| Product Type | Emitter |
Technical information
| Connectivity Technology | Wired |
|---|---|
| Sensing Technology | Optical |
| Sensor Type | Image Sensor |
Controls/indicators
| Status Indicators | LED |
|---|
Environmental conditions
| Operating Relative Humidity (H-H) | 10-95% |
|---|---|
| Operating Temperature (T-T) | -10-55°C |
Physical characteristics
| Colour | Silver |
|---|
Power description
| Input Voltage | 24V DC |
|---|---|
| Power Source | AC Power, Battery |
Attributes
| Input Voltage | 24V DC |
|---|---|
| Power Source | AC Power, Battery |
