Xtralis by Honeywell OSE-SPW emitter, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)

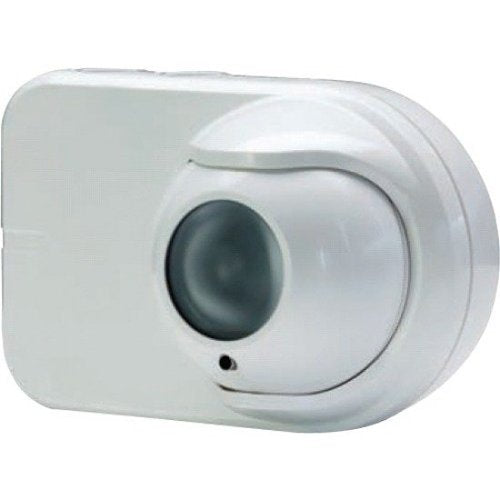

Xtralis by Honeywell OSE-SPW is an emitter from the OSID range.
Open-area Smoke Imaging Detection (OSID) by Xtralis is an innovative system for reliable, cost-effective smoke detection for large, open spaces requiring standard sensitivity detection. In its simplest configuration, OSID uses one imager, a camera-like device with a wide field of view, and a wired or battery-powered emitter roughly aligned on the opposite wall within the protected area. The emitter sends both infrared and ultraviolet coded light signals to the imager.
If the light reception is altered due to the presence of genuine smoke particles, the imager will go into alarm.
Key features
- CMOS imager with wide viewing angles
- Simple installation, commissioning and maintenance
- High tolerance to vibration and structural movement
- High resistance to dust, fogging, steam, reflections and object intrusion
- High resistance to reflected sunlight
- On-board log memory
- Aesthetically discreet and 3D coverage
- Aesthetically discreet and 3D coverage
If you are matching this to an existing installation, work from the OSE-SPW part number rather than the description.
Specifications
Technical information
Certifications
Controls/indicators
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | Xtralis by Honeywell |
|---|---|
| Manufacturer Part Number | OSE-SPW |
| Product Series | OSID |
| Product Type | Emitter |
Technical information
| Sensing Technology | Infrared |
|---|
Certifications
| WEEE Compliant | Compliant |
|---|
Controls/indicators
| Status Indicators | Yes |
|---|
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 96.00mm |
| Height | 136.00mm |
| Width | 208.00mm |
Power description
| Input Voltage | 24V DC |
|---|---|
| Power Source | Battery |
Miscellaneous
| Additional Information | Large, open spaces where high-sensitivity detection is not the priority but reliable, easy detection is essential, including: Airports Train stations Shopping centers Stadiums Hotels, conv |
|---|
Attributes
| Input Voltage | 24V DC |
|---|---|
| Power Source | Battery |
| Additional Information | Large, open spaces where high-sensitivity detection is not the priority but reliable, easy detection is essential, including: Airports Train stations Shopping centers Stadiums Hotels, conv |
