Xtralis by Honeywell OSID-INST installation kit, Silver

Free Delivery
£ 212 62
(Incl. VAT) RRP: £255.14
Save £42.52

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Xtralis by Honeywell OSID-INST is an installation kit from the OSID range.

The OSID Installation Kit (OSID-INST) is used in commissioning and maintaining the correct operation of the OSID Smoke Detector. When the OSID system is installed over very large distances and in brightly lit areas, it may be difficult to see the output laser from the OSID Laser Alignment Tool when commissioning the system. To aid in the alignment of the Imager and Emitter, the Commissioning Aid (reflector) is provided.

The reflector should be attached to the opposing unit that is not being aligned. For example, if the Emitter is being aligned, the reflector should be attached to the front cover of the Imager. Returning light to the user, off the reflector, from the laser alignment tool will be brighter and make it easier to determine if the unit being commissioned has been aligned correctly.

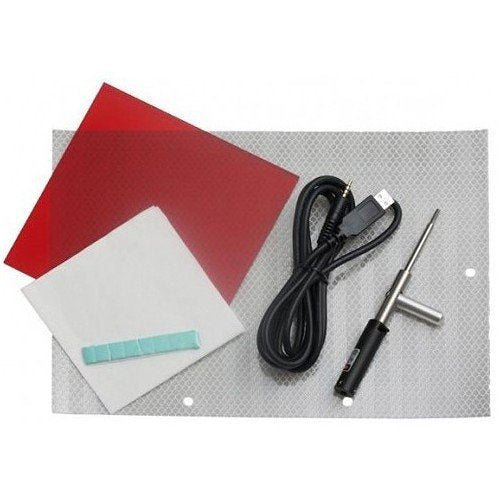

The kit includes: OSID Installation and Maintenance Manual, OSID commissioning aid (reflector), Blu-Tack adhesive, OSID smoke simulating test filter, OSID cleaning cloth, OSID serial PC interface cable, OSID laser alignment tool, with three LR44 button cell batteries pre-installed.

Key features

  • Dual wavelength LED-based smoke detection
  • Optical imaging with CMOS imaging chip
  • On-board event log for fault and alarm diagnostics
  • High tolerance to false alarm due to building movement
  • High tolerance to transient dust, steam and intrusion of solid objects
  • Easy alignment with large adjustment and viewing angles
  • No need for precise alignment

If you are matching this to an existing installation, work from the OSID-INST part number rather than the description.

£ 212 62
RRP: £255.14 Save £42.52
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£212.62 Incl. VAT £255.14
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Xtralis by Honeywell
Manufacturer Part Number
OSID-INST
Product Series
OSID
Product Type
Kit
General information
Packaged Quantity
1
Physical characteristics
Colour
Silver
Material
Metal
Miscellaneous
Compatibility
OSID-DE
Attributes
Compatibility
OSID-DE
Package Contents
Laser Alignment Tool; Test Filter; PC Cable; Cleaning Cloth; Reflectors; Manual
Specifications
General information
Physical characteristics
Miscellaneous
Attributes

Specifications

Brand Name Xtralis by Honeywell
Manufacturer Part Number OSID-INST
Product Series OSID
Product Type Kit

General information

Packaged Quantity 1

Physical characteristics

Colour Silver
Material Metal

Miscellaneous

Compatibility OSID-DE

Attributes

Compatibility OSID-DE
Package Contents Laser Alignment Tool; Test Filter; PC Cable; Cleaning Cloth; Reflectors; Manual

Xtralis by Honeywell OSID-INST installation kit

Xtralis by Honeywell OSID-INST installation kit, Silver

Who this is for

For the installer — this is the installation kit supplied under Xtralis by Honeywell part number OSID-INST. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an installation kit made by Xtralis by Honeywell. The part number OSID-INST is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this installation kit is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact installation kit I have been quoted? Check the manufacturer part number OSID-INST against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against OSID-INST answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
