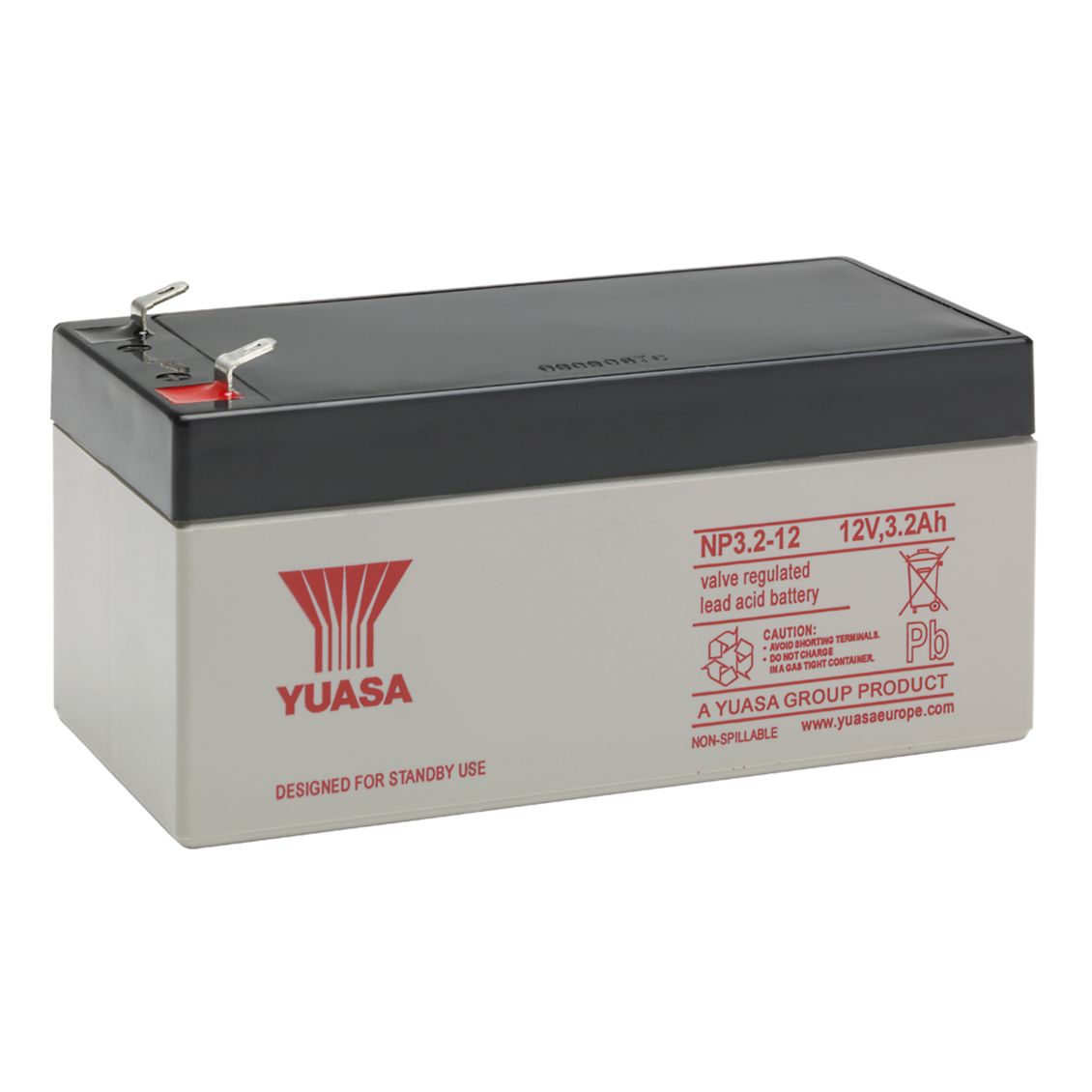

Yuasa Yuasa-NP3.2-12 Standby & Cyclic AGM VRLA Battery, 12V, 3.2Ah
About this product
The Yuasa NP3.2-12 is a 12V 3.2Ah standby & cyclic AGM VRLA battery from the Yuasa NP series, for standby or light cyclic use. Its applications include uninterruptible power supplies (UPS), fire & security systems and emergency lighting.
Key features
- 12V nominal voltage, 3.2Ah capacity at the 20-hr rate (to 10.5V at 20°C)
- Absorbent Glass Mat (AGM) technology with a glass fibre separator
- Sealed, valve regulated construction with a low-pressure venting system to release excess gas
- Gas recombination technology recombines 99% of the gas generated during normal use
- Can be installed and operated in any orientation except permanently inverted
- Lead calcium grids and a low self discharge rate for a long shelf life
- Superb recovery from deep discharge
- FASTON - Quickfit / release terminals (JST where stated), 4.75
Frequently asked questions
What are the dimensions of the Yuasa NP3.2-12?
Length 134 mm (±1), width 67 mm (±1) and height over terminals 64 mm (±2), with a mass of 1.1 kg.
What charge voltage does the NP3.2-12 need?
Float charge voltage at 20°C is 13.65 V per block (±1%). Cyclic (or boost) charge voltage at 20°C is 14.5 V per block (±3%), with a cyclic (or boost) charge current limit of 0.8 A.
Can the battery be mounted on its side?
Yes. It can be installed and operated in any orientation except permanently inverted.
What terminals does it have?
FASTON - Quickfit / release terminals (JST where stated), 4.75.
Does the NP3.2-12 need maintenance?
Its sealed construction prevents electrolyte leakage for a safe & low maintenance battery, however regular testing and inspection is required.
What temperatures can it be charged and used in?
Charge -15°C to +50°C; discharge -20°C to +60°C; storage (in fully charged condition) -20°C to +60°C.
Specifications
Specifications
| Brand | Yuasa |
|---|---|
| Model | Yuasa-NP3.2-12 |
| Manufacturer Part Number (MPN) | Yuasa-NP3.2-12 |
| Nominal voltage (V) | 12 |
| 20-hr rate Capacity to 10.5V at 20°C (Ah) | 3.2 |
| 10-hr rate Capacity to 10.8V at 20°C (Ah) | 2.9 |
| Length (mm) | 134 (±1) |
| Width (mm) | 67 (±1) |
| Height over terminals (mm) | 64 (±2) |
| Mass (kg) | 1.1 |
| Terminal Type | FASTON - Quickfit / release (JST where stated) 4.75 |
| Storage temperature (in fully charged condition) | -20°C to +60°C |
| Charge temperature | -15°C to +50°C |
| Discharge temperature | -20°C to +60°C |
| Capacity loss per month at 20°C (% approx.) | 3 |
| Case Material | Standard ABS (UL94:HB) |
| Float charge voltage at 20°C (V)/Block | 13.65 (±1%) |
| Float charge voltage at 20°C (V)/Cell | 2.275 (±1%) |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Block | 14.5 (±3%) |
| Cyclic (or Boost) charge Voltage at 20°C (V)/Cell | 2.42 (±3%) |
| Float charge current limit (A) | No limit |
| Cyclic (or Boost) charge current limit (A) | 0.8 |
| Maximum Discharge Current 1 second (A) | 96 |
| Maximum Discharge Current 1 minute (A) | 32 |
| Impedance measured at 1 kHz (mΩ) | 50 |
| VdS (Germany) | VdS No: G 118039 |
