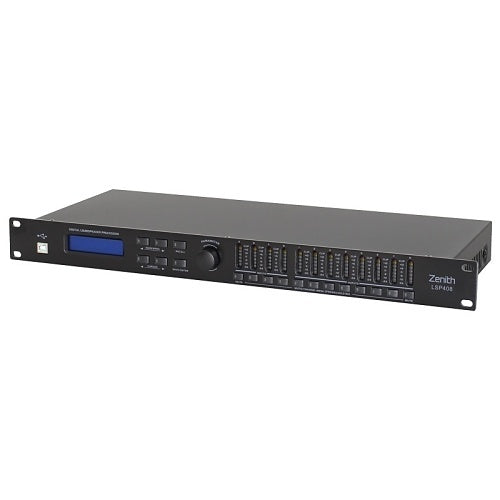

Zenith PROC07 loudspeaker processor
About this product
Please note: this is a non-returnable item (excluding faulty goods)
Zenith PROC07 is a loudspeaker processor from the LSP range.
Built around a powerful processor core, the Zenith LSP loudspeaker management systems offer a wide variety of features allowing the sound technician to adjust delay, dynamics, routing, crossover and EQ either from the easy to use interface on the front panel or via the Windows based PC editing suite. The processor is pre-loaded with a range of standard presets for basic systems including 2-way stereo, each of these maybe copied, edited and saved into user presets, or alternatively the sound technician may create and store their own. The user may backup or duplicate presets via the PC editing suite.
Key features
- 24-bit DSP with high performance AD/DA converters
- 48kHz sampling rate
- Input/output level control with -40dB to +12dB range in 0.1dB increments
- Output high pass and low pass filter, each filter has multiple slopes and types
- Filter slopes: 12dB/Oct, 24dB/Oct, 36dB/Oct, 48dB/Oct
- Filter types: Butterworth, Bessel or Linkwitz-Riley
- Up to 1 second of delay for each input and output, switchable and selectable
- Compressor for each input and output with adjustable threshold, ratio, attack-time, release-time and knee type
- Phase reverse for each input and output
- Copy function allows settings to be copied between channels
If you are matching this to an existing installation, work from the PROC07 part number rather than the description.
Specifications
Specifications
| Brand Name | Zenith |
|---|---|
| Manufacturer Part Number | PROC07 |
| Product Series | LSP |
Zenith PROC07 loudspeaker processor
