A fan isolator switch cuts every conductor feeding an extractor fan — live, neutral and the switched live from the light circuit — so the fan is genuinely dead before anyone puts a screwdriver near it.
That third pole is the whole point, and it is the reason an ordinary light switch will not do.
Fit the wrong one and a fan that looks isolated is still holding a live conductor. Here is what to buy, where it goes, and the one product that gets confused with it.
1. What a fan isolator switch actually does
A bathroom extractor with a timer or humidistat has three connections coming into it: a permanent live, a neutral, and a switched live that tells it the light has gone on. Cut only the permanent live and the switched live is still there. Cut only the light circuit and the permanent live is still there.
A triple-pole isolator breaks all three at once. One pull of the cord and the fan is isolated from everything feeding it.
It is a maintenance device, not a control. You do not use it to turn the fan on and off day to day — you use it when the fan is coming down.
Trade Tip: the cord is the giveaway on a job you have not seen before. If there is a three-pole isolator on the ceiling, somebody wired that fan properly. If there is nothing, assume the fan is fed straight off the lighting circuit and treat every conductor as live until you have proved otherwise at the consumer unit.
2. Why three poles and not two
Double-pole switching breaks live and neutral. That is fine for an appliance with a simple supply, and it is what a 45A cooker switch or a shower pull cord does.
An extractor with a run-on timer is not that appliance. The switched live is a separate conductor from a separate part of the circuit, and a DP switch leaves it connected. Three poles, every time, on any fan with a timer or humidistat.
Knightsbridge SF1100MW — 10A Fan Isolator Switch, Triple Pole, Screwless Design, Matt White, IP20, 230V, EN 60669-1 Certified. The standard domestic answer: triple pole, screwless plate, and certified to EN 60669-1. Matt white disappears into a bathroom ceiling, which is exactly what you want from a device nobody should be touching.
3. Where it goes
Outside the room, or inside it on the ceiling with a cord — those are your two options, and which one applies depends on the bathroom zones.

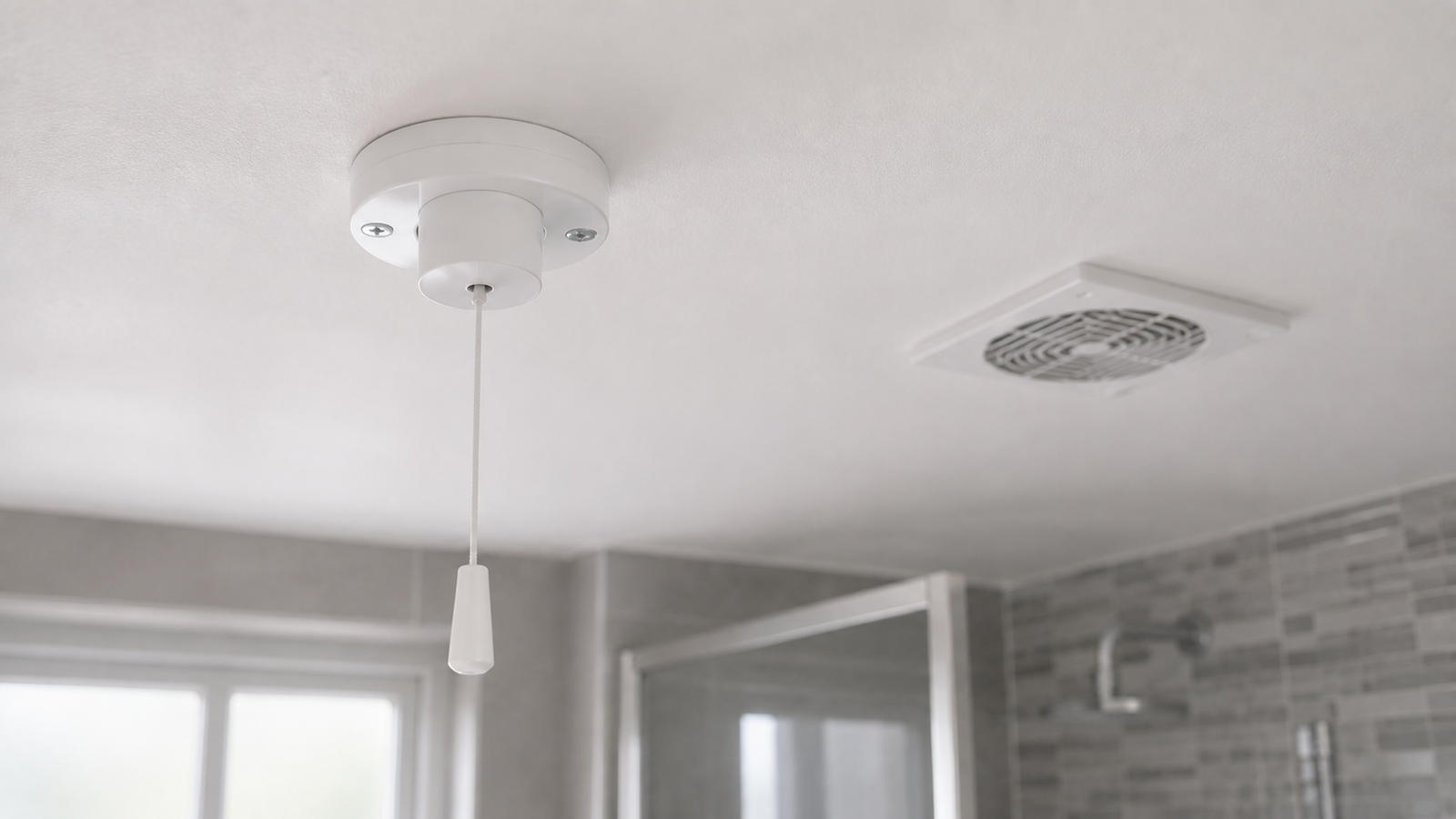

A pull-cord ceiling isolator keeps the switch itself out of reach of anyone in the bath, which is the reason cords exist in bathrooms at all. A plate switch has to go outside the room.
Whichever you choose, put it where an installer can reach it without a ladder over a bath. An isolator that is awkward to get to is an isolator that gets skipped.
If bathroom zones are the part you are unsure about, the zones rule and what fits where covers the IP ratings each zone needs, and the extractor fan guide covers sizing the fan itself.
4. Fan isolator or rotary isolator? Not the same thing
Search for "isolator" and you will get two completely different products. Buying the wrong one is a wasted trip at best.
A fan isolator is a 10A triple-pole switch, IP20, indoor, on a standard plate or a ceiling pull cord. It is for a domestic extractor.
A rotary isolator is a weatherproof IP65 box with a red-and-yellow handle, rated 20A, 32A or 63A across four poles at 230–415V. It is for outdoor plant, air conditioning and machinery — three-phase territory, not a bathroom ceiling.
Knightsbridge M1100 — Metal Clad 10A Fan Isolator Switch, Triple Pole, IP20, 230V. The metal-clad version for garages, workshops, plant rooms and commercial corridors, where a plastic plate will get knocked. Still a fan isolator, still IP20 — metal clad is about mechanical strength, not weatherproofing.
Trade Tip: metal clad is not outdoor. It is a steel enclosure for somewhere things get bumped, and its IP20 rating tells you it keeps fingers out and nothing else. If the location gets wet, you need a genuinely weatherproof product, not a tougher indoor one.
5. Finishes, and the key-switch option
The triple-pole mechanism is the same across the range; the plate is what changes. Flat plate, screwless, brushed chrome, polished brass, black nickel, gunmetal — pick to match the rest of the room's wiring accessories rather than leaving one white plate in a chrome bathroom.
Knightsbridge FP1100BC — 10A Flat Plate Fan Isolator Switch, Ultra Low Profile, Brushed Chrome Finish, 1500A Short Circuit Capacity. The flat-plate version where the isolator sits somewhere visible and a moulded white plate would look like an afterthought.
Knightsbridge GDM021BC — 10A Fan Isolator Key Switch Module, Key Switch Operation, 230V, IP20, Brushed Chrome. A grid module operated by key rather than a rocker. Useful in schools, offices and let properties where you want the isolator present but not available to whoever happens to be standing next to it.
Summary: choosing a fan isolator switch
| Situation | Fit this | Why |
|---|---|---|
| Domestic bathroom fan with timer | 10A triple-pole, ceiling pull cord | Breaks the switched live too, and stays out of reach |
| Fan outside a bathroom | 10A triple-pole plate switch | No zone restriction on the switch position |
| Garage, workshop, plant room | Metal clad triple pole | Steel enclosure survives knocks — still IP20 |
| School, office, let property | Key switch grid module | Present but not casually operable |
| Outdoor plant, AC, machinery | IP65 rotary isolator | A different product entirely — 4 pole, 20–63A |
Expert Help in the West Midlands
Villa Road, Birmingham, since 1975. Fan isolators are a thirty-second conversation across our counter and a much longer one on site if the wrong type goes in. Tell us what the fan does — timer, humidistat, or just on with the light — and we will tell you what it needs.
The full range sits in switches and controls, alongside the plates and back boxes in wiring accessories.
Fan isolator switch FAQs
Do I legally need a fan isolator switch?
Every fixed appliance needs a means of isolation, and for an extractor with a timer that means isolating all three conductors. A triple-pole isolator is the normal way to achieve it. If you are unsure whether your installation complies, that is a question for a competent person, not a guess.
Can I use a normal light switch instead?
No. A single-pole light switch breaks one conductor. A fan with a run-on timer has a permanent live as well as a switched live, so the fan can remain energised with the light switch off.
Does a fan isolator need to be outside the bathroom?
A plate switch does. A ceiling-mounted pull-cord isolator can be inside the room, which is why cords are the usual solution in a bathroom. Check the zone your chosen position falls in before you fix anything.
