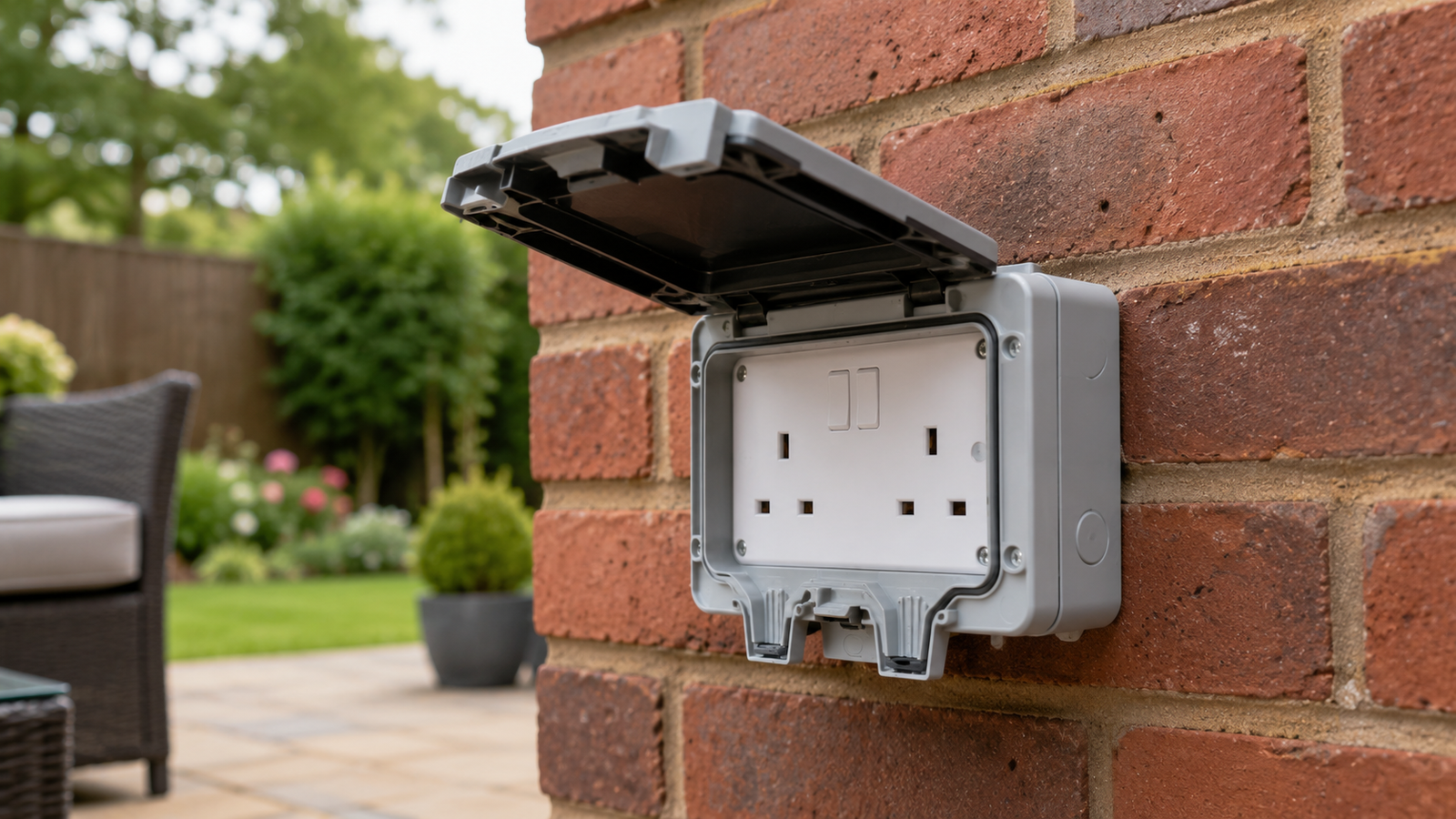

An outdoor socket needs three things: a weatherproof enclosure rated IP55 or better, RCD protection on the circuit, and a proper cable gland where the cable enters. Miss any one of them and you have built a hazard with a lid on it.
The good news is that the decision is simpler than the internet makes it look. There are really only two routes, and which one you take depends on whether you want a permanent fixture or a socket you can put away in October.
1. IP54, IP55, IP66 — what the numbers mean outdoors
The first digit is solids, the second is water, and outdoors it is the second digit that decides everything.
IP54 handles splashing. Adequate under a deep porch or a covered walkway where nothing is landing on it directly.
IP55 handles low-pressure jets from any direction. This is the sensible minimum for a socket on an exposed house wall in a British winter.
IP66 handles powerful jets. Worth it where the socket faces prevailing weather, sits low enough to catch splashback off a patio, or is anywhere near a pressure washer.
Trade Tip: the rating applies to the enclosure as installed, with the cover closed and the gland done up. An IP66 socket with the lid propped open while the mower is plugged in is, at that moment, an IP20 socket in the rain. Buy for how it lives with something plugged into it, not how it looks on the shelf.
2. Fixed socket or weatherproof extension?
A fixed outdoor socket is wired back to the consumer unit on its own protected circuit. It is tidy, permanent, and it is notifiable electrical work — a new outdoor circuit is not a DIY job in England and Wales, and it needs certifying.
A weatherproof extension gives you outdoor power from an existing indoor socket without new fixed wiring. Less elegant, far less commitment, and it comes indoors when you have finished.
Take a stance? If you use outdoor power more than a handful of times a year — mower, pressure washer, Christmas lights, hot tub — get a fixed socket fitted properly. If it is genuinely occasional, an extension is the honest answer and nobody needs to lift a floorboard.
Mercury 429.917UK — Weatherproof Outdoor Socket, IP55 Rated, 1 Gang, Transparent PVC Cover. The straightforward single fixed outdoor socket at IP55, with a transparent cover so you can see at a glance whether anything is plugged in behind it.
Mercury 429.918UK — Weatherproof 2 Gang Outdoor Socket, IP55 Rated, Durable Housing, 2 Covers. Two gangs, two independent covers. Worth the small extra over a single: the second outlet always gets used, and a trailing adaptor hanging off a single outdoor socket defeats the point of fitting one.
3. RCD protection is not optional
Outdoors is the worst place to be relying on luck. Water, bare feet, metal tools and a long flex are the exact conditions an RCD exists for, and any socket outlet intended to supply equipment outdoors needs that protection.
If your consumer unit already provides RCD protection on the relevant circuit, that requirement may already be met — but "may" is doing a lot of work in that sentence, and the only way to know is for someone competent to look at the board.
If your RCD is tripping already, fix that before you extend anything: the seven real causes of RCD tripping covers where to start.
4. Fixing, glands and the drip loop
Three things separate an outdoor socket that lasts from one that fills with water in its second winter.
Use the glands. Cable entries take a proper gland sized to the cable — that is what maintains the rating. A cable pushed through a knockout with silicone smeared round it is not a seal, it is an intention.
Leave a drip loop. Bring the cable up into the enclosure from below wherever you can, or leave a downward loop before it enters, so water runs off the cable instead of running along it into the box.
Mount it clear of splashback. Low on a wall above a hard patio means every downpour throws water back up at it. Higher is drier, and it is easier to reach with wet hands full of extension lead.
Mercury 429.919UK — Weatherproof Outdoor Single Switch and Socket, IP55 Rated, Durable Design, M20 Cable Glands. Switch and socket in one weatherproof enclosure with M20 glands included, so the sealing method is designed in rather than improvised on the wall.
5. The occasional-use route
If a fixed circuit is more than the job warrants, a weatherproof extension does the same work for an afternoon and comes back inside afterwards.
Mercury 429.867UK — Weatherproof Outdoor 1 Gang Socket with 5m Extension Cable, IP54 Rated, 13A, Orange. Five metres of lead and a weatherproof outlet on the end, in high-visibility orange so nobody puts a mower through it. IP54, so keep it out of standing water and off open ground in heavy rain.
Trade Tip: whichever route you take, unplug and coil the extension when you are done. An outdoor lead left connected all summer is a lead that spends every night with water sitting in the coupler — and it is the coupler, not the socket, that usually fails first.
Summary: outdoor socket quick reference
| Situation | What to use | Minimum rating |
|---|---|---|
| Deep porch, fully covered | Fixed outdoor socket | IP54 |
| Exposed house wall | Fixed outdoor socket | IP55 |
| Facing weather, low on a patio | Fixed outdoor socket | IP66 |
| Occasional use, no new circuit | Weatherproof extension | IP54 and bring it in after |
| Any of the above | RCD protection | Non-negotiable |
Expert Help in the West Midlands
We have been supplying Birmingham's installers from Villa Road since 1975, and outdoor sockets are one of the jobs where the difference between a good install and a bad one is invisible on day one and obvious in February. Tell us where it is going and what will be plugged into it, and we will point you at the right rating rather than the dearest box.
Browse outdoor and weatherproof sockets, outdoor switches and outdoor and IP-rated boxes.
Outdoor socket FAQs
Can I fit an outdoor socket myself?
Adding a new outdoor circuit is notifiable work in England and Wales and needs to be done and certified by a competent person. That is not merchant caution — it is the rule. A plug-in weatherproof extension needs no new fixed wiring and is a different proposition entirely.
What IP rating does an outdoor socket need?
IP55 is the sensible minimum on an exposed wall. IP54 is acceptable under genuine cover. Go to IP66 where it faces the weather or sits where a patio will throw water back at it.
Does an outdoor socket need its own RCD?
It needs RCD protection. Whether that comes from the consumer unit or from a device at the socket depends on your installation, and it is worth having someone confirm which applies to yours rather than assuming the board already covers it.
