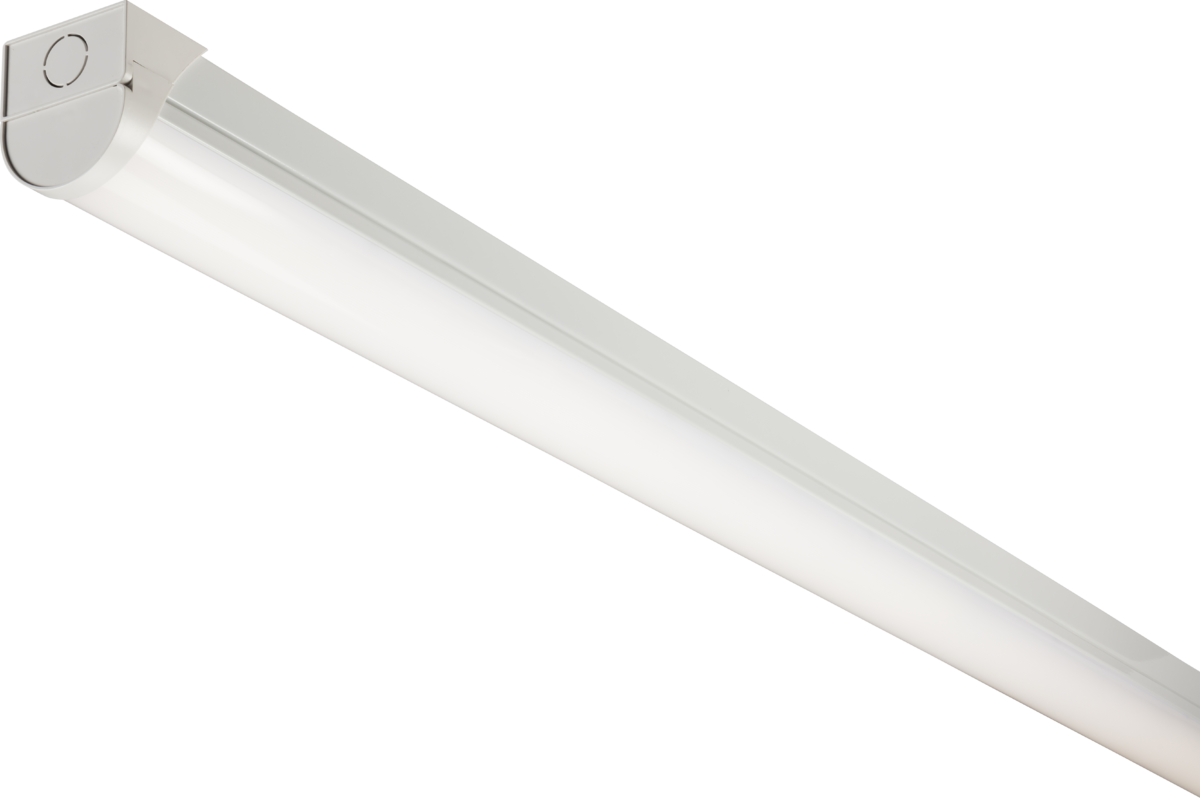

CCT Adjustable Microwave LED Batten
The CCT and wattage adjustable LED batten is designed for high efficiency and versatility. Made from steel and polycarbonate, it replaces conventional fluorescent fixtures with ease, providing long life and low maintenance.
- CCT adjustable (3000K, 4000K, 5700K)
- Wattage adjustable (27W/52W)
- High efficiency: up to 7,520 lumens at 52W
- Microwave presence detection with adjustable settings
- Easy installation with push-fit loop in-loop out terminals
Specifications
I
White
IP20
Pressed steel
& polycarbonate
230V 50Hz

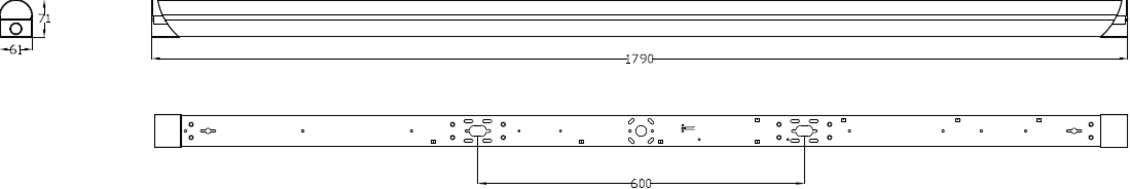

Dimensions
61 mm
1790 mm
71 mm
Lamp
60,000
No
145
LED
D
Driver
Constant Current
Luminaire
Opal
Photometric
3000/4000/5700 K
>85
3750/4170/4070, 6590/7520/7150 lm
27/52
CCT
165.5 lm/W
8410 lm
Specifications
Class | I |
---|---|
Finish | White |
IP Rating | IP20 |
Construction | Pressed steel |
Construction 2 | & polycarbonate |
Primary Voltage | 230V 50Hz |
Dimensions
Width | 61 mm |
---|---|
Length | 1790 mm |
Projection | 71 mm |
Lamp
L70B50 | 60,000 |
---|---|
Dimmable | No |
Beam Angle | 145 |
Lamp Technology | LED |
Energy Rating (Class) post 2021 SLR | D |
Driver
Driver Type | Constant Current |
---|
Luminaire
Diffuser | Opal |
---|
Photometric
CCT | 3000/4000/5700 K |
---|---|
CRI | >85 |
Lumens | 3750/4170/4070, 6590/7520/7150 lm |
Wattage | 27/52 |
Light Colour | CCT |
Efficacy (Light source) | 165.5 lm/W |
Lumens (Light source only) | 8410 lm |
CCT Adjustable Microwave LED Batten features

6ft CCT Adjustable Microwave LED Batten, 27/52W, 4,170lm/7,520lm, 230V, BATSCWM6
