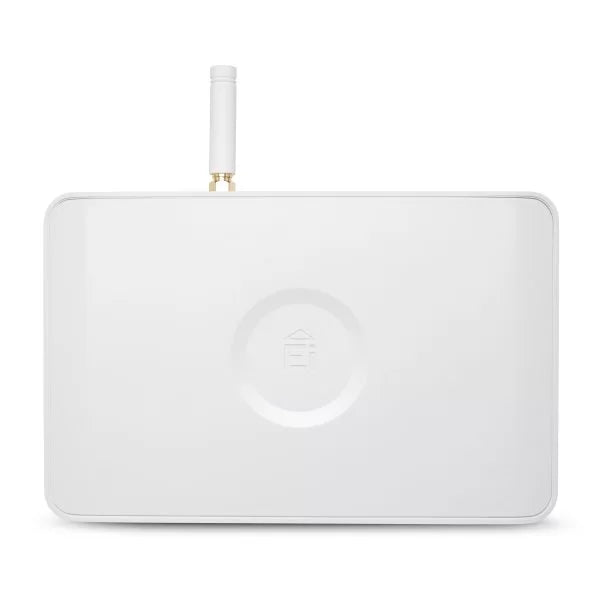

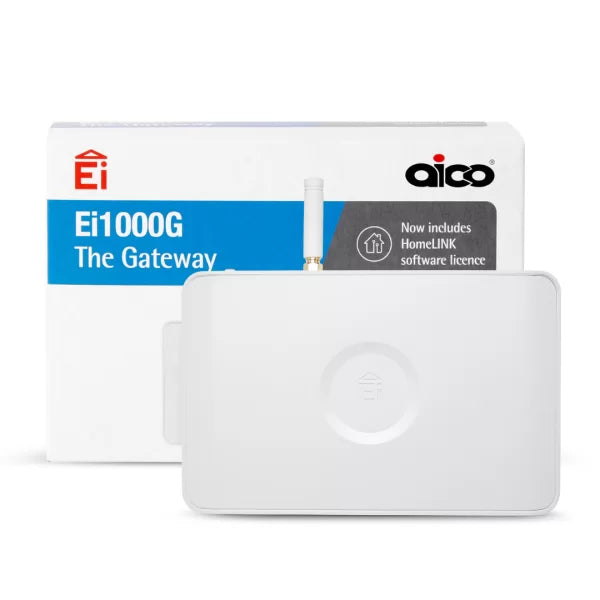

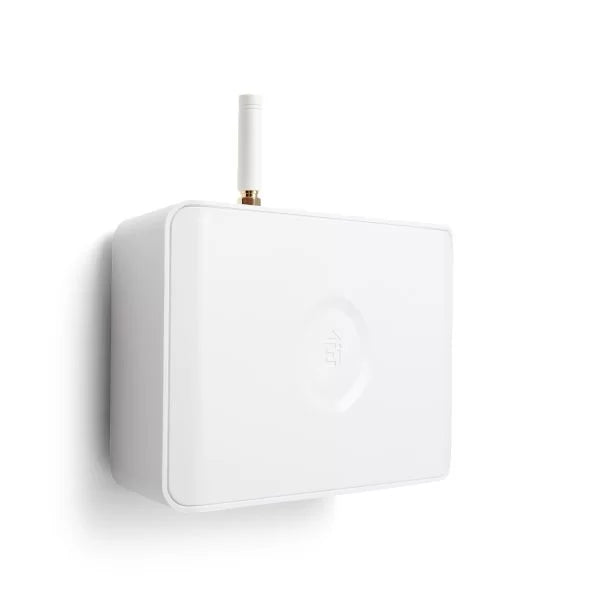

Aico Ei1000G SmartLINK Gateway – Remote Monitoring for RF Alarms – SKU: Ei1000G

The Aico Ei1000G Gateway is a powerful remote monitoring hub that connects Aico’s SmartLINK and RadioLINK+ enabled alarm systems to a secure online cloud portal. Designed to streamline property management and enhance fire safety compliance, the Ei1000G allows landlords, housing associations, and maintenance teams to remotely monitor up to 12 Radio Frequency (RF) devices across multiple properties in real time.

Product SKU: Ei1000G
Compatible Devices: All Aico alarms using SmartLINK or RadioLINK+ technologies (not compatible with original RadioLINK systems)

Unlock Real-Time Alarm Monitoring & Remote Management

The Ei1000G acts as the central data gateway between Aico’s mesh-based RF alarm networks and an intuitive cloud portal. Installed once and powered via a 230V AC mains supply (with a rechargeable battery backup), the Gateway securely captures alarm activity and environmental data—such as fire, carbon monoxide detection, or mains failure—and transmits it via the GSM network to a user-friendly dashboard accessible from any device.

The Gateway supports bidirectional AES128 data encryption, ensuring that both transmitted and received data is secure and GDPR-compliant. The device connects seamlessly using a roaming SIM card (included), offering flexibility with no GSM provider limitations.

Key Features:

• Brand: Aico

• Model SKU: Ei1000G

• Function: Remote alarm monitoring and data transmission via GSM

• Compatible With: SmartLINK and RadioLINK+ enabled Aico alarms (e.g., Ei3014, Ei3016, Ei3018, Ei3024, Ei3028)

• Power Source: 230V AC mains with rechargeable battery backup

• Connectivity: GSM (2G) with roaming SIM card included

• RF Frequency: 868MHz proprietary mesh network

• Range: >100m in free air

• System Size: Connects up to 12 RF devices

• Data Storage: Cloud-based via SmartLINK portal

• User Interface: Web dashboard + SmartLINK app for installation and management

• Warranty: 5 years

• Product Life: 10 years

Example Use Case: Housing Association Management

A property manager overseeing multiple units in a residential block can install Aico alarms with SmartLINK modules (such as Ei3018 CO alarms or Ei3024 multi-sensor fire alarms) in each flat. By integrating the Ei1000G Gateway into the system, all alarms are now wirelessly interconnected and report events remotely to the manager’s online portal.

Should a resident experience a mains power failure or if a CO leak is detected, the manager receives instant notifications via SMS or email, enabling faster response and reducing unnecessary site visits. Maintenance forecasting and end-of-life alerts for each alarm head are also accessible through the portal, ensuring compliance with UK housing regulations and saving time and resources.

What Alarm Events Does the Ei1000G Report?

The Gateway logs and transmits a wide array of status updates and events from connected devices, including:

• Fire alarm activations

• Carbon monoxide levels (High, Medium, Low)

• Mains power loss

• Manual test button press

• Head removed or replaced

• End-of-life alerts

• Sensor health and status
  (Note: Event availability is model-dependent.)

All data is displayed in a real-time online dashboard, allowing users to generate custom reports, automate alerts, and track alarm health for each property.

Installation & Configuration Made Simple

The SmartLINK App (available on Android and iOS) guides users through a step-by-step installation process, from House Coding devices to verifying GSM connectivity and alarm communication. Three LED indicators on the Gateway provide at-a-glance feedback for power, RF communication, and GSM signal.

Technical Overview:

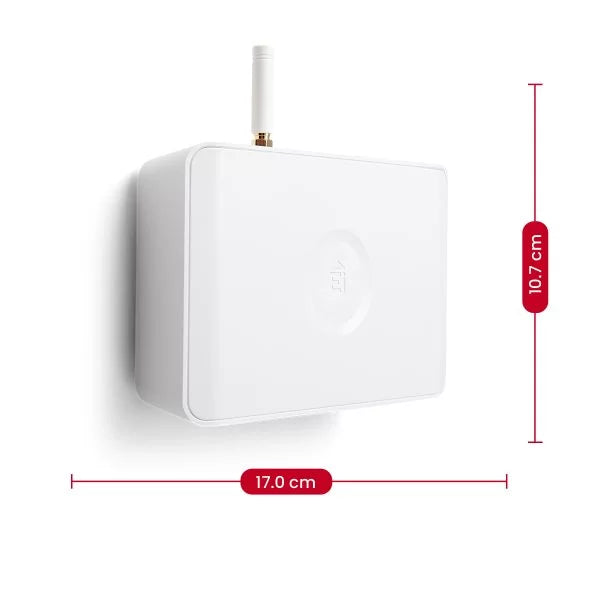

• Dimensions: 175mm x 124mm x 81mm

• Weight: 550g

• Temperature Range: -10°C to +40°C

• Humidity: 15% to 95% RH (non-condensing)

The Aico Ei1000G Gateway (SKU: Ei1000G) is the ultimate tool for scalable, secure, and smart alarm management. Whether you manage five homes or five hundred, this cloud-connected solution delivers full visibility of your Aico fire and CO safety systems—anytime, anywhere.
