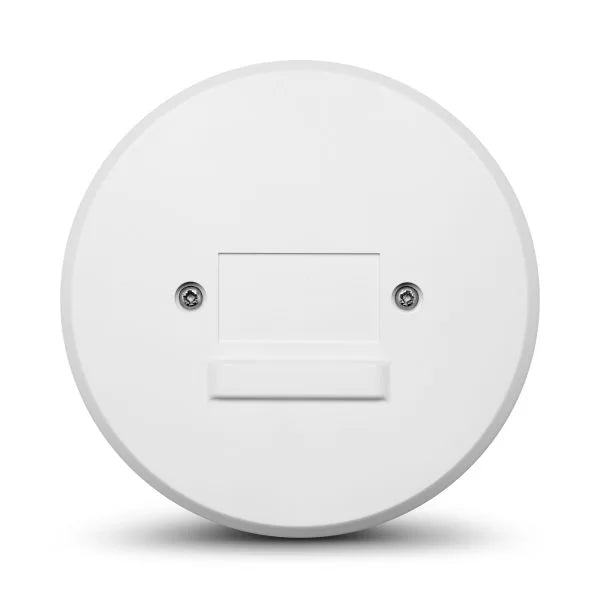

Aico Ei128R Hard Wired Relay Module – External Device Trigger for Alarm Systems – SKU: Ei128R

The Aico Ei128R Hard Wired Relay Module (SKU: Ei128R) is a reliable, mains-powered accessory that enhances your fire and CO alarm system by enabling automated triggering of external devices when an alarm is activated. Whether you’re looking to integrate visual alert systems such as strobe lights, or specialist applications like telecare systems, extractor fans, or magnetic door releases, the Ei128R provides the perfect interface.

Designed for use with Aico’s most popular alarm series, including the 3000 Series, Ei2110e Multi-Sensor Fire Alarm, 160e Series, and 140RC Series, this relay module is ideal for residential, commercial, and supported living environments where expanded alert functionality is essential.

Key Features:

• Aico
• Ei128R
• 230V AC mains powered
• Hard-wired interconnect from the alarm system
• (Normally Open or Normally Closed)

  up to 240V AC / 5 Amps – suitable for both AC and DC voltages

  230V directly or 24V using an external power supply

• Resets after 5 seconds
  Maintains signal while alarm is active
• remote mounting or use with
  centre recess knockout for flexible cabling
• Max 12 devices including alarms and modules

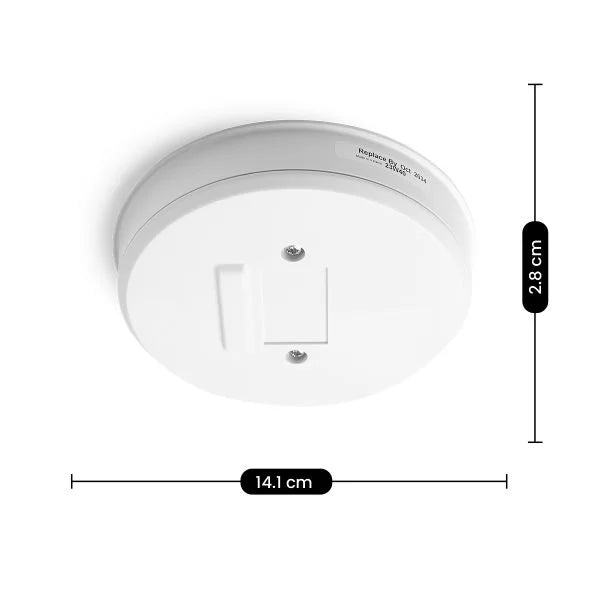

• 135mm diameter x 20mm depth
• 170g (inclusive of packaging)
• Ireland


Enhanced Integration with Safety and Building Systems

The Ei128R is designed to bridge your alarm system with external life-saving or automation devices. As soon as any alarm in the interconnected system is triggered, the module receives the signal via the hard-wire interconnect and activates its relay output. This can be connected to a wide range of systems, such as:

for visual alerts (ideal for deaf or hard of hearing occupants)

or ventilation systems

for smoke compartmentation

or warden call systems in supported housing

This makes the Ei128R especially useful in multi-residential buildings, care homes, and commercial properties where additional fire safety equipment is required to respond automatically to alarm conditions.

Example Use Case: Assisted Living Apartment Integration

A residential care apartment fitted with Aico 3000 Series smoke and CO alarms requires integration with a telecare system to alert support staff in another unit. The Ei128R is installed beneath a hallway heat alarm and hard-wired to the telecare input. When any interconnected alarm activates, the Ei128R triggers the system remotely, ensuring staff are notified immediately. The relay is set to pulse mode to avoid prolonged system activation.

Simple Installation with Maximum Flexibility

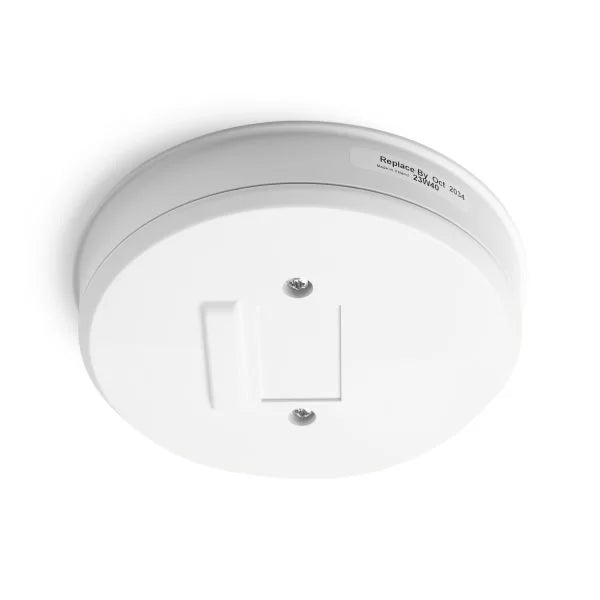

Installation is quick and tidy thanks to the unit’s easi-fit base footprint, pre-drilled knockouts, and intuitive wiring block. You can mount it directly beneath a compatible Aico alarm or in a standalone location using the included Ei128COV cover. Switching between pulse and continuous modes is done via a manual internal selector switch, allowing for tailored response behaviour based on the connected system’s requirements.

The Aico Ei128R Hard Wired Relay Module (SKU: Ei128R) is a robust, cost-effective solution for adding external output control to your Aico fire and CO alarm system. With full compatibility across multiple Aico product ranges, dual-mode output, and high-capacity relay contacts, it offers professional-grade reliability and flexibility—ideal for use in homes, care facilities, and complex building environments where advanced safety integration is key.
