Aico Ei168RC RadioLINK Base – Wireless Interconnect Mount for 140e Series Alarms – SKU: Ei168RC

The Aico Ei168RC RadioLINK Base (SKU: Ei168RC) is a mains-powered easi-fit mounting plate that adds wireless interconnection capabilities to Aico’s 140e Series smoke and heat alarms. Designed to provide a seamless upgrade path to a hybrid alarm network, the Ei168RC enables alarms to wirelessly link together using RadioLINK mesh technology, ensuring that if one alarm is triggered, all interconnected alarms across the system will sound.

With its built-in rechargeable lithium backup battery, the Ei168RC maintains full functionality even in the event of mains power failure. This makes it ideal for residential, rental, or retrofitting installations where cabling is limited or additional alarms need to be added with minimal disruption.

Key Features:

• Aico
• Ei168RC
• RadioLINK Base Plate
• 230V AC, 50Hz
• Rechargeable lithium cell (sealed-in, tamper-proof)
• 868.499 MHz
• +5dBm
• Multi-path, multi-repeater for robust performance
• Up to 30 metres in free air
• Supports up to 12 RadioLINK devices
• Blue LED for RF activity and fault diagnostics
• 140e Series: Ei146e Optical Smoke Alarm, Ei144e Heat Alarm
• Aico RadioLINK products
• Replaces standard easi-fit base

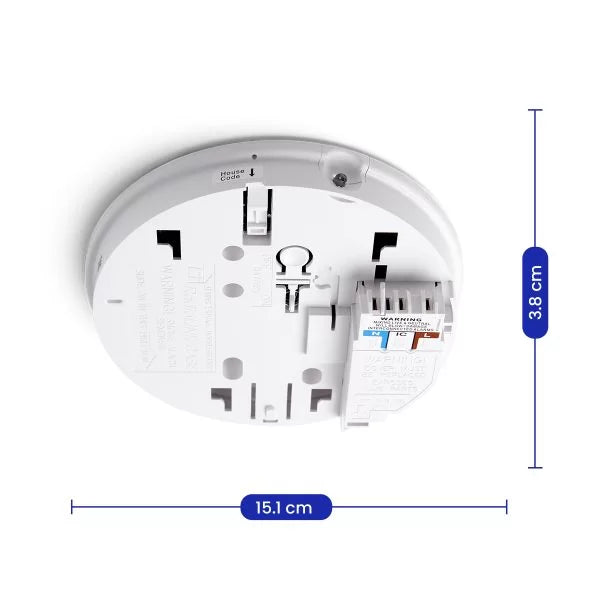

• 150mm diameter x 37mm depth (20mm installed)
  153mm x 153mm x 40mm
• 235g (boxed)
• 0°C to 40°C
• 15–95% RH (non-condensing)
• CE marked, EN300220-3 (RF), EN301489-3 (EMC)


What Is the Ei168RC RadioLINK Base?

The Ei168RC is a wireless alarm base that eliminates the need for long and disruptive wiring runs. Once installed under a compatible Aico alarm, it enables the alarm to communicate with other RadioLINK devices wirelessly. This is particularly beneficial in installations where:

Using the House Coding function, all devices in the system are paired securely to prevent interference from other nearby systems. This ensures reliable communication and system integrity.

Use Case: Retrofitting a Rental Property with Wireless Interconnection

A landlord managing a Victorian-era rental property needs to add heat and smoke alarms in the kitchen, hallway, and upstairs landing. Instead of rewiring the entire home, the installer replaces one existing 140e alarm base with an Ei168RC, and installs new alarms with additional Ei168RC bases. By House Coding the units together, they now form a hybrid interconnected system, linking both existing and new alarms wirelessly—saving both time and money, while complying with building regulations.

Easy Setup with Seamless Compatibility

Installing the Ei168RC is as simple as replacing a standard Aico easi-fit base. Once mains power is connected, and the base is fitted, the alarm simply twists into place. The base can also be used as a part of a hybrid system, where both wired and wireless alarms operate in unison.

The Aico Ei168RC RadioLINK Base (SKU: Ei168RC) is the go-to solution for anyone seeking to upgrade to a wireless or hybrid alarm network without extensive rewiring. It offers quick installation, dependable performance, and full compatibility with Aico’s market-leading alarm systems. Ideal for residential homes, HMOs, care facilities, or any site requiring scalable and reliable alarm connectivity.
