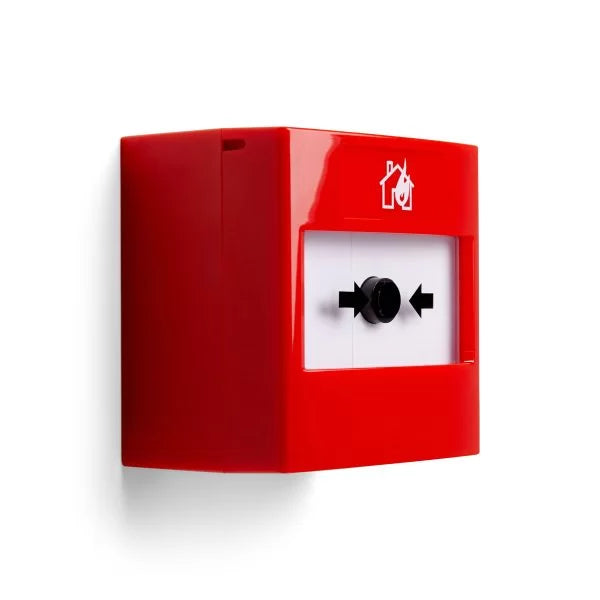

Aico MCP401RC Hard Wired Manual Call Point – Mains Powered Resettable Fire Alarm Trigger – SKU: MCP401RC

The Aico MCP401RC Hard Wired Manual Call Point (SKU: MCP401RC) is a durable, mains-powered emergency device designed to remotely activate all interconnected alarms in a fire or carbon monoxide safety system. Built with a re-settable, non-breaking front plate, the MCP401RC offers long-term functionality and is an essential component for enhancing the accessibility and responsiveness of any Aico alarm system.

With a 230V AC mains supply and hard-wired interconnection, the MCP401RC ensures system-wide alarm activation when pressed—making it ideal for homes, HMOs, care homes, and commercial properties where manual override of the alarm system may be required.

Key Features:

• Brand: Aico

• Model SKU: MCP401RC

• Power Supply: 230V AC mains with tamper-proof rechargeable lithium cells

• Backup Power: Up to 2 months operation during mains failure

• Interconnection: Hard-wired – connects using 3-core cable (Live, Neutral, Interconnect)

• Alarm Triggering: Pressing the call point activates all alarms in the system

• Resettable Plate: Non-breaking plastic design – reset with key (MCPSK2)

• Visual Alert: Activation flag clearly indicates triggered state

• Compatibility:

  • Aico 3000 Series

  • Aico 140e Series

  • Supports interconnection with Smoke, Heat, and CO alarms

  • Max 20 devices on a single system (including this call point)

• Supplied Accessories:

  • 35mm surface mounting box

  • Reset key

  • Fixing screws

• Dimensions: 85mm x 85mm x 60mm

• Weight: 230g (packaged)

• Warranty: 5-year manufacturer guarantee

• Manufactured: In Ireland

• Spare Key: Available separately (Product Code: MCPSK2)

Reliable Emergency Activation with Mains Power Support

The Aico MCP401RC provides a dedicated manual trigger point within an alarm network. This is especially useful in high-traffic or shared spaces, where a user may identify a fire or CO hazard before an alarm activates automatically. Once pressed, the MCP401RC sends a signal to all interconnected alarms, activating them simultaneously for maximum audibility across the property.

Unlike traditional glass break units, this device features a non-breakable, re-settable front panel that mimics the feel of glass without requiring costly replacement after activation. A clear visual flag appears when triggered, providing immediate visual confirmation of activation.

Example Use Case: HMO or Assisted Living Compliance

In a multi-occupancy residential building, such as an HMO or supported housing scheme, multiple Aico 3000 and 140e Series alarms are installed across bedrooms, kitchens, and communal areas. To meet fire safety regulations and enhance accessibility, Aico MCP401RC call points are installed near exits and key corridors. If a resident or carer spots a fire before a detector is triggered, they can press the call point to activate every alarm in the system immediately, improving evacuation speed and safety.

Once the emergency is cleared, staff can simply reset the unit using the provided key, eliminating downtime and replacement costs.

Seamless Integration & Installation

Installation is straightforward using a standard 3-core wiring setup (Live, Neutral, Interconnect), identical to the Aico smoke and heat alarms. Supplied with a 35mm surface mount back box, reset key, and fixings, the MCP401RC can be positioned wherever a manual activation point is required—such as near doors, stairwells, or emergency exits.

The built-in lithium battery ensures operational backup for up to two months in the event of a mains outage, maintaining essential manual activation functionality.

The Aico MCP401RC Hard Wired Manual Call Point (SKU: MCP401RC) is a critical safety accessory that enables remote activation of your alarm system through a simple, user-friendly interface. With mains power, system-wide interconnection, and resettable functionality, it is ideal for improving fire and CO safety in residential, rental, and institutional environments—meeting both safety compliance and user accessibility needs.
