Altron AW1507/4 Heavy Duty Tubular Fixed Pole, 4m Height, 50kg Max Equipment Weight
About this product

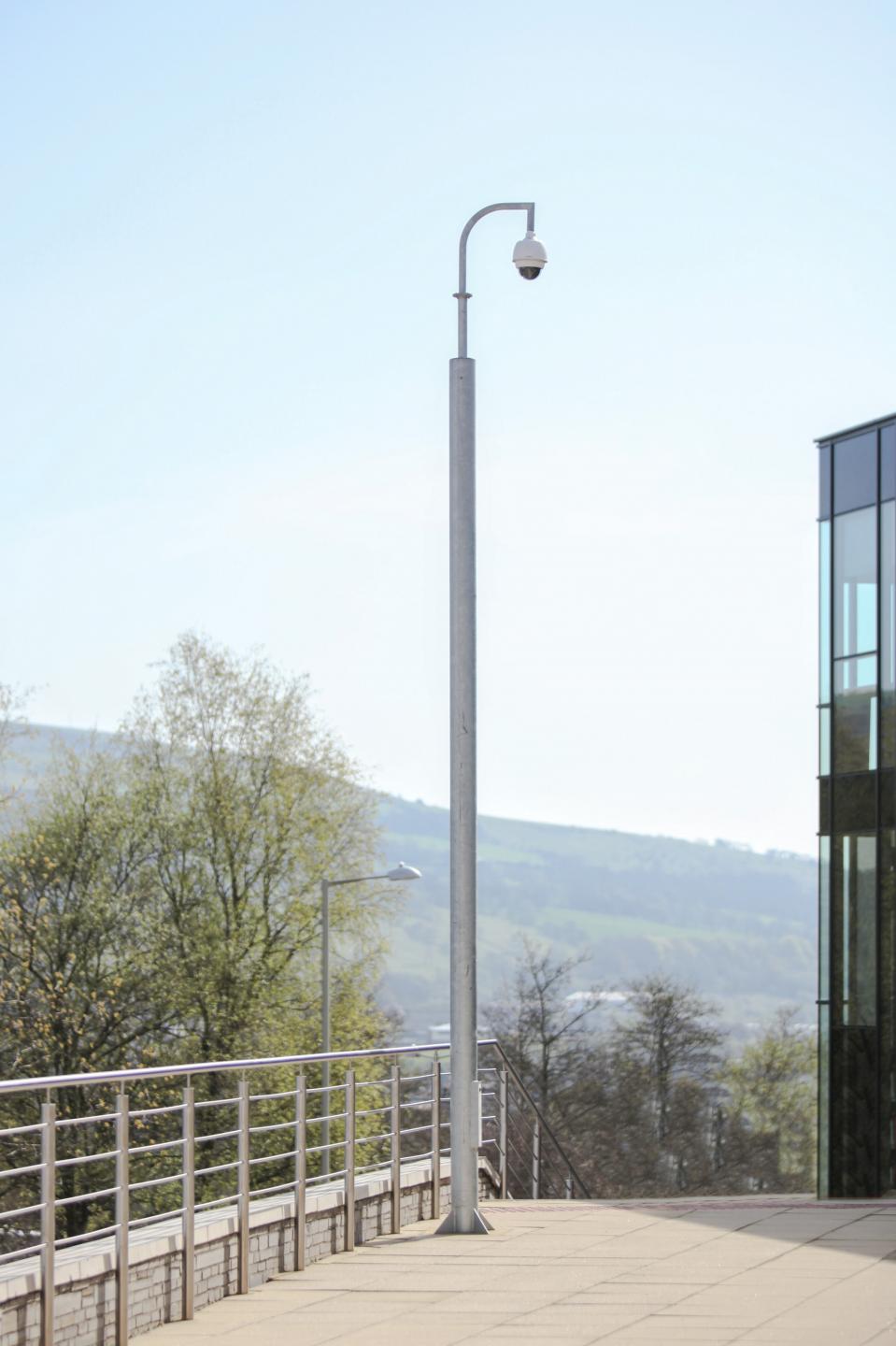

The Altron AW1507/4 is a 4 m heavy duty tubular fixed pole for CCTV, typically for large fully functional PTZ and offset camera loads where min deflection is required. It takes a max equipment weight of 50 kg and a max equipment surface area of 0.5 m2 at the pole top.
Key features
- Heavy duty: typically for large fully functional PTZ and offset camera loads where min deflection is required
- 4 m height
- Max equipment weight at top: 50 kg
- Max equipment surface area: 0.5 m2
- Pole ØB: 168 mm
- Door aperture: 362 x 106 mm (H x W)
- High tensile steel, hot dip galvanised after fabrication for durability
- Internal cabling, close fitting flush doors and solid secure heavy duty door locks
Frequently asked questions
How much can the AW1507/4 carry at the top?
The max equipment weight at the top is 50 kg, with a max equipment surface area of 0.5 m2.
What kind of camera is this heavy duty pole for?
Altron's heavy duty poles are typically for large fully functional PTZ and offset camera loads where min deflection is required.
How tall is the pole and how much does it weigh?
It is 4 m high and the pole weight is 110 kg.
What is the pole made of?
It is constructed in high tensile steel and hot dip galvanised after fabrication; the galvanised finish can be painted over in colours from the BS and RAL colour charts.
What size is the camera mounting plate?
All camera mounting plates are Ø 127 with 8 No Ø 8.5 equi-spaced on 101.6 PCD.
Can options such as an embedded base be added?
Options are added as a suffix to the part number. Embedded base (/EB) poles are made to order.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | AW1507/4 |
| Manufacturer Part Number (MPN) | AW1507/4 |
| Duty | Heavy duty |
| Height in mtrs | 4 |
| Max equip weight at top (kgs) | 50 |
| Max equip surface area (m2) | 0.5 |
| Pole ØB (mm) | 168 |
| Door aperture size H x W (mm) | 362 x 106 |
| Pole weight (kgs) | 110 |
| Construction | High tensile steel, hot dip galvanised after fabrication |
| Camera mounting plate | Ø 127 with 8 No Ø 8.5 equi-spaced on 101.6 PCD |
| Column spacer | Ø 40 thro’ column spacer |
| Security features | Internal cabling; close fitting flush doors; solid secure heavy duty door locks |
