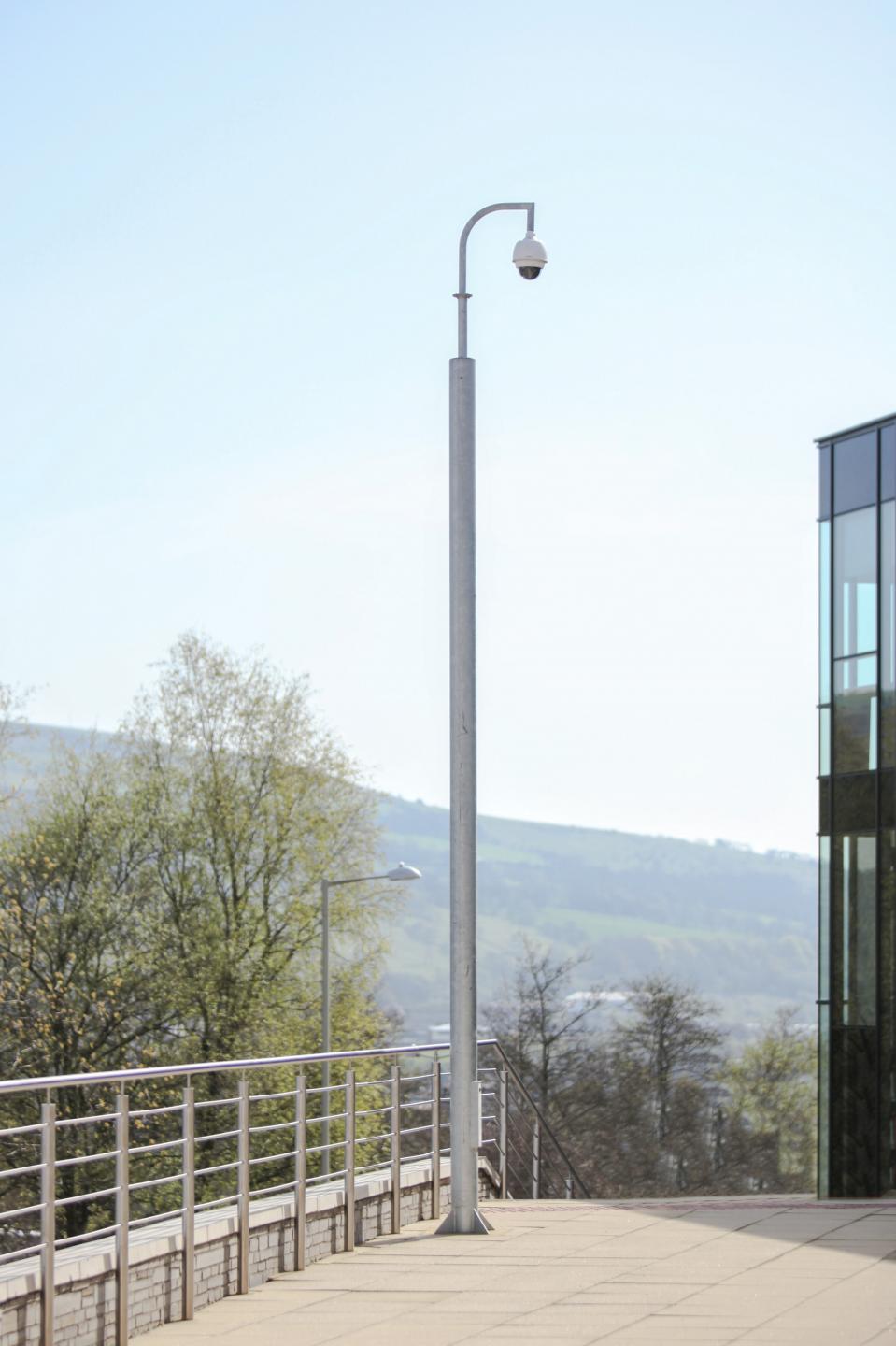

Altron AW1507/6 Medium Duty Tubular Fixed CCTV Pole, 6m, 35kg Max Equipment Weight at Top
About this product
The Altron AW1507/6 is a 6 m medium duty tubular fixed pole for CCTV cameras, typically for light PTZ and larger dome installations. It carries a max equipment weight of 35 kg and a max equipment surface area of 0.4 m2 at the top, and is constructed in high tensile steel, hot dip galvanised after fabrication.
Key features
- Height 6 m
- Max equipment weight at top: 35 kg
- Max equipment surface area: 0.4 m2
- Pole diameter (ØB) 168 mm; door aperture 362 x 106 mm
- High tensile steel, hot dip galvanised after fabrication
- Close fitting, flush compartment doors with heavy duty secure locks and a treated backboard
- Internal cabling and earthing lugs within the pole and on the door
- Camera mounting plate Ø 127 with 8 No Ø 8.5 equi-spaced on 101.6 PCD
Frequently asked questions
How much equipment can the AW1507/6 carry?
The max equipment weight at the top is 35 kg, with a max equipment surface area of 0.4 m2. Where payloads are greater than those stated, Altron asks to be contacted.
What duty rating is this pole?
It is a medium duty fixed pole. Medium duty poles are typically for light PTZ and larger dome installations.
What size is the camera mounting plate?
Camera mounting plates are Ø 127 with 8 No Ø 8.5 equi-spaced on 101.6 PCD, with dimensions in mm.
Is there a direct burial version?
Yes. The embedded base (direct burial) version is part number AW1507/6/EB and is made to order.
Can options such as double doors or a tamper switch be added?
Yes. Options are added as suffixes to the part number, for example AW1507/6/DD/AC/LS for double doors, an access cover plate with cable restraining bar and a lighting spigot. A tamper switch is option /TS.
What finish does the pole have, and can it be painted?
It is hot dip galvanised after fabrication, and there is an option of painting over the galvanised finish in colours from BS and RAL colour charts.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | AW1507/6 |
| Manufacturer Part Number (MPN) | AW1507/6 |
| Duty | Medium duty - Typically for light PTZ and larger dome installations |
| Height | 6 m |
| Max equip weight at top | 35 kg |
| Max equip surface area | 0.4 m2 |
| Pole ØB | 168 mm |
| Door aperture size H x W | 362 x 106 mm |
| Pole weight | 154 kg |
| Material | High tensile steel, hot dip galvanised after fabrication |
| Galvanising | Hot dipped galvanising after fabrication to ISO 1461 |
| Design | Design analysis in accordance with ILE TR7, BS6399 and BS8100 |
| Camera mounting plate | Ø 127 with 8 No Ø 8.5 equi-spaced on 101.6 PCD |
| Compartment | Close fitting flush doors with heavy duty secure locks; treated equipment mounting board |
| Earthing | Earthing lugs within pole and on door |
| Options (suffix) | /EB embedded base (direct burial, made to order); /AC access cover plate and cable restraining bar; /B decorative banding; /HS high security locks; /SN screw in swan neck adaptor; /W washer bottle conduit; /DD double door; /TS tamper switch; /LS lighting spigot |
