Altron AEC-90-65-45 Steel Equipment Cabinet, 15u Mounting Posts, Galvanised & Powder Coated
About this product

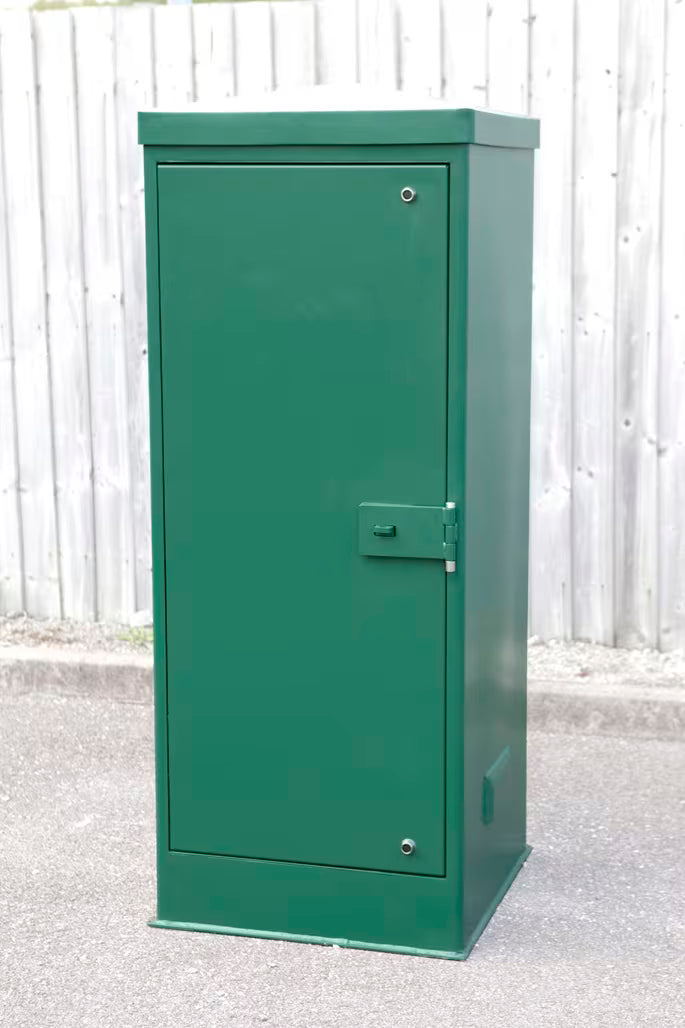

The Altron AEC-90-65-45 is a heavy duty fabricated steel equipment cabinet for 19” rack mounted equipment, galvanised and then powder coated. It comes with secure locks and 19inch front rack mounting posts as standard, with a 15u mounting post height, a hinged door with internal hinges and convection venting.
Key features
- For use with 19” rack mounted equipment, 15u mounting post height
- Heavy duty fabricated steel construction
- Hot dip galvanised then powder coated
- Hinged door with internal hinges
- Numerous security features for a high level of vandal resistance
- Earthing points within the cabinet and on the door
- Convection air circulation and venting as standard
- Supplied with secure locks and 19inch front rack mounting posts
Frequently asked questions
What equipment does the AEC-90-65-45 take?
It is for use with 19” rack mounted equipment, and is supplied with 19inch front rack mounting posts with a 15u mounting post height.
Is the cabinet supplied with locks?
Yes. AEC equipment cabinets are supplied with secure locks as standard. A high security lock in addition (CAB-HS), a padlockable hasp and staple (PHS-AEC) and 4 point door locking (suffix /A4P) are options.
How is the cabinet ventilated?
Convection air circulation and venting are standard. Filters for vents (CAB-F) and a circulation fan + filters for AEC-65-45 cabinets (AEC-65-45/CF) are options.
Can the cabinet be heated or temperature controlled?
A thermostat (CAB-T) and a heater (CAB-H) are options.
How heavy is the cabinet?
The cabinet weight is 120 Kgs.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | AEC-90-65-45 |
| Manufacturer Part Number (MPN) | AEC-90-65-45 |
| Height H | 1010 |
| Depth D | 450 |
| Maximum Mounting Depth M | 380 |
| Door Aperture | 650 x 516 |
| Mounting Post Height | 15u |
| Cabinet Weight | 120 Kgs |
| Rack mounting | 19inch front rack mounting posts |
| Construction | Heavy duty fabricated steel, galvanised and then powder coated |
| Door | Hinged door with internal hinges |
| Earthing | Earthing points within cabinet and on door |
| Ventilation | Convection air circulation and venting as standard |
