Altron ACT2BP Tilt-down Base Plate Mounted Lattice Tower, 6m Height, 40kg Max Equipment Weight
About this product

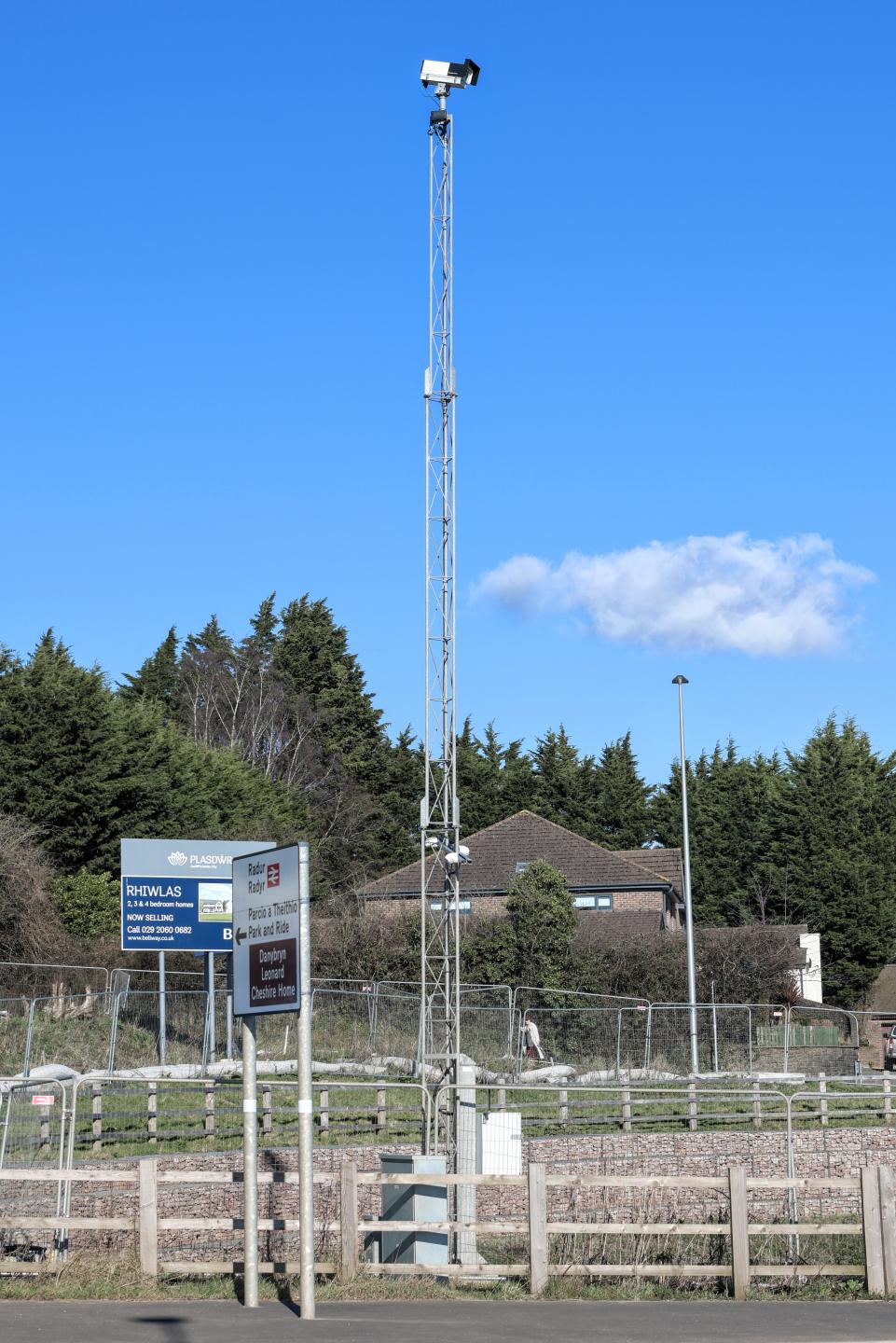

The Altron ACT2BP is a 6 m tilt-down, base plate mounted lattice tower from the ACT Standard Lattice Towers range, for medium to heavy camera installations, dual lighting & CCTV applications, or lighter applications where rigidity is paramount. Tilt down models enable camera maintenance at ground level, and the ACT2BP takes a max equipment weight of 40 kg at the top.
Key features
- 6 m tilt-down lattice tower, base plate mounted
- Max equipment weight at top: 40 kg; max surface area: 0.4 m2
- Camera maintenance at ground level with the tilt-down design
- Demountable winch (DW1000/AT) keeps the tilt down tower secure
- Modular construction for ease of assembly and installation on site
- Good rigidity for exposed, high wind load locations
- High tensile steel, hot dip galvanised after fabrication for durability
- Stable mounting platform for all camera types
Frequently asked questions
How much equipment can the ACT2BP carry?
The max equipment weight at the top is 40 kg, with a max surface area of 0.4 m2.
How are cameras on the ACT2BP maintained?
Tilt down models enable camera maintenance at ground level. This tower uses winch part number DW1000/AT, and demountable winches keep tilt down models secure.
How much space is needed behind the tower?
The tower rear clearance is 1700 mm.
Is the ACT2BP suited to public areas?
Altron notes that ACT towers are less suited to public area installations due to their climbable nature and external camera cabling.
What is the tower made of?
It is constructed in high tensile steel and hot dip galvanised after fabrication; the galvanised finish can be painted over in colours from the BS and RAL colour charts.
Can cable conduit be fitted?
Yes, as an option: Ø20mm conduit (/C20) or Ø25mm conduit (/C25) fitted to the tower.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | ACT2BP |
| Manufacturer Part Number (MPN) | ACT2BP |
| Height in mtrs | 6 |
| Post type | BP (tilt-down base plate mounted) |
| Max equip weight at top (kgs) | 40 |
| Max surface area (m2) | 0.4 |
| Post size A2 (mm) | 120 |
| Top length (mtrs) | 1.5 |
| Tower rear clearance (mm) | 1700 |
| Winch part number | DW1000/AT |
| Product weight (kgs) | 135 |
| Construction | High tensile steel, hot dip galvanised after fabrication |
