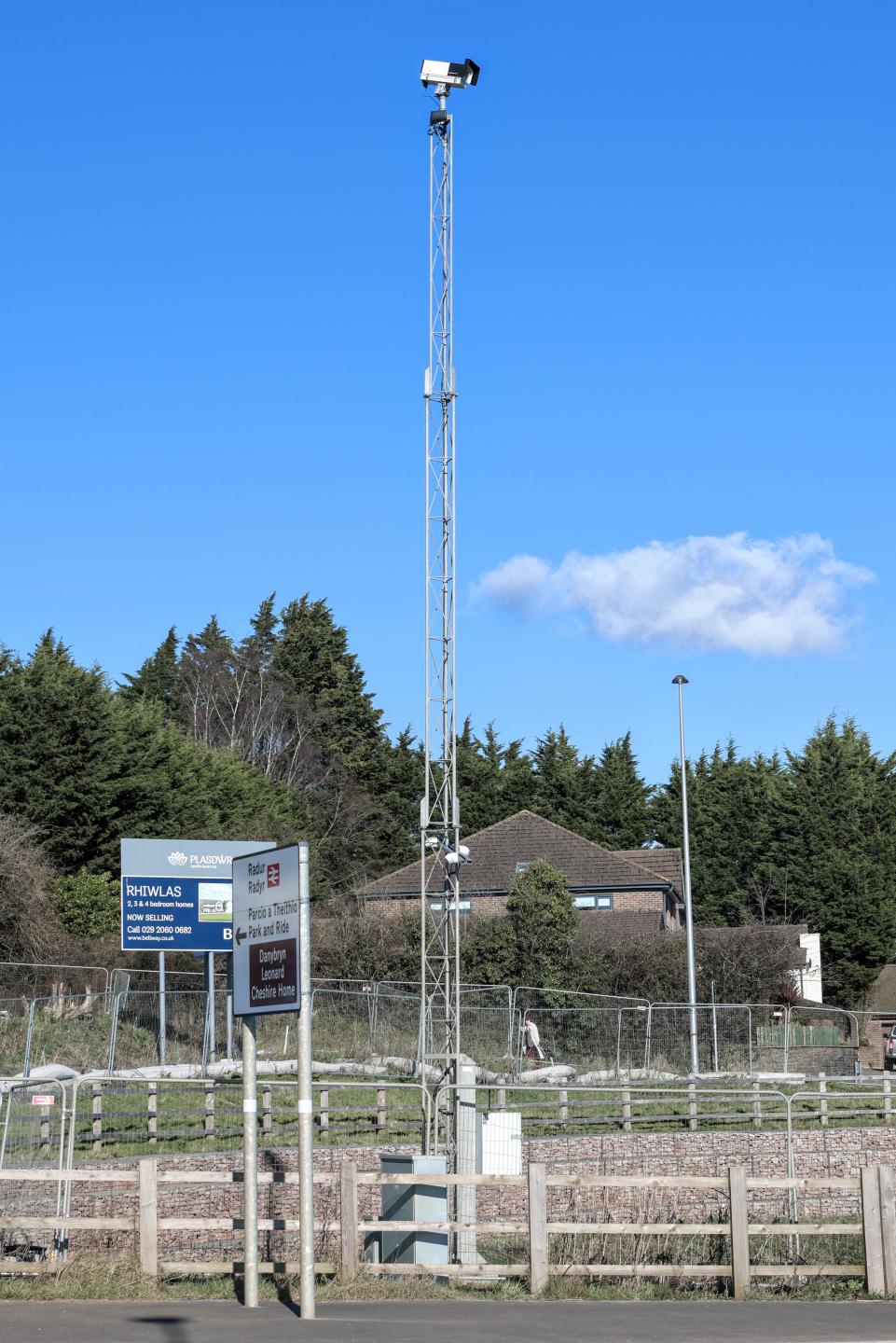

Altron ACT3BP Tilt-down Base Plate Mounted Lattice Tower, 7.5m Height, Max 35kg Equipment at Top
About this product
The Altron ACT3BP is a tilt-down base plate mounted tower from the ACT Standard Lattice Towers range, 7.5 m high, for medium to heavy camera installations, dual lighting & CCTV applications, or lighter applications where rigidity is paramount. Tilt Down models enable camera maintenance at ground level, and the tower carries a max equipment weight at top of 35 kg.
Key features
- Height 7.5 m (ACT3)
- Max equipment weight at top 35 kg, max surface area 0.25 m2
- Tilt-down, base plate mounted: camera maintenance at ground level
- Demountable winches ensure tilt down models are secure; winch part number DW1500/AT
- Modular construction for ease of assembly and installation on site
- High tensile steel, hot dip galvanised after fabrication for durability
- Provides a stable mounting platform for all camera types
- Conduit cabling system as an option: Ø20mm conduit /C20 or Ø25mm conduit /C25
Frequently asked questions
How tall is the Altron ACT3BP?
The ACT3 tower is 7.5 m high; the ACT3BP is the tilt-down base plate mounted version.
How much camera equipment can it carry?
The max equipment weight at top is 35 kg, with a max surface area of 0.25 m2.
How are cameras maintained on a tilt-down tower?
Tilt Down models enable camera maintenance at ground level. The ACT3BP uses the DW1500/AT winch, and demountable winches ensure tilt down models are secure.
What is the tower made from?
High tensile steel, hot dip galvanised after fabrication for durability, with the option of painting over the galvanised finish in colours from BS and RAL colour charts.
How heavy is the ACT3BP?
The product weight is 147 kg.
Is it suited to public areas?
ACT Towers are less suited to public area installations due to their climbable nature and external camera cabling. They suit restricted access areas and exposed, high wind load locations.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | ACT3BP |
| Manufacturer Part Number (MPN) | ACT3BP |
| Range | ACT - Standard Lattice Towers |
| Tower type | Tilt-down base plate mounted (BP) |
| Height | 7.5 m |
| Max equip weight at top | 35 kg |
| Max surface area | 0.25 m2 |
| Top length | 3 m |
| Tower rear clearance | 1700 mm |
| Winch part number | DW1500/AT |
| Product weight | 147 kg |
| Material | High tensile steel, hot dip galvanised after fabrication |
| Conduit options | Ø20mm conduit /C20; Ø25mm conduit /C25 |
| Design standard | Wind loading and structural design in accordance with BS8100 PT1 and BS8100 PT3 |
| Galvanising | Hot dipped galvanising after fabrication to ISO 1461 |
| Winch standard | Winches conform to American ASAE standard S361.IT. |
