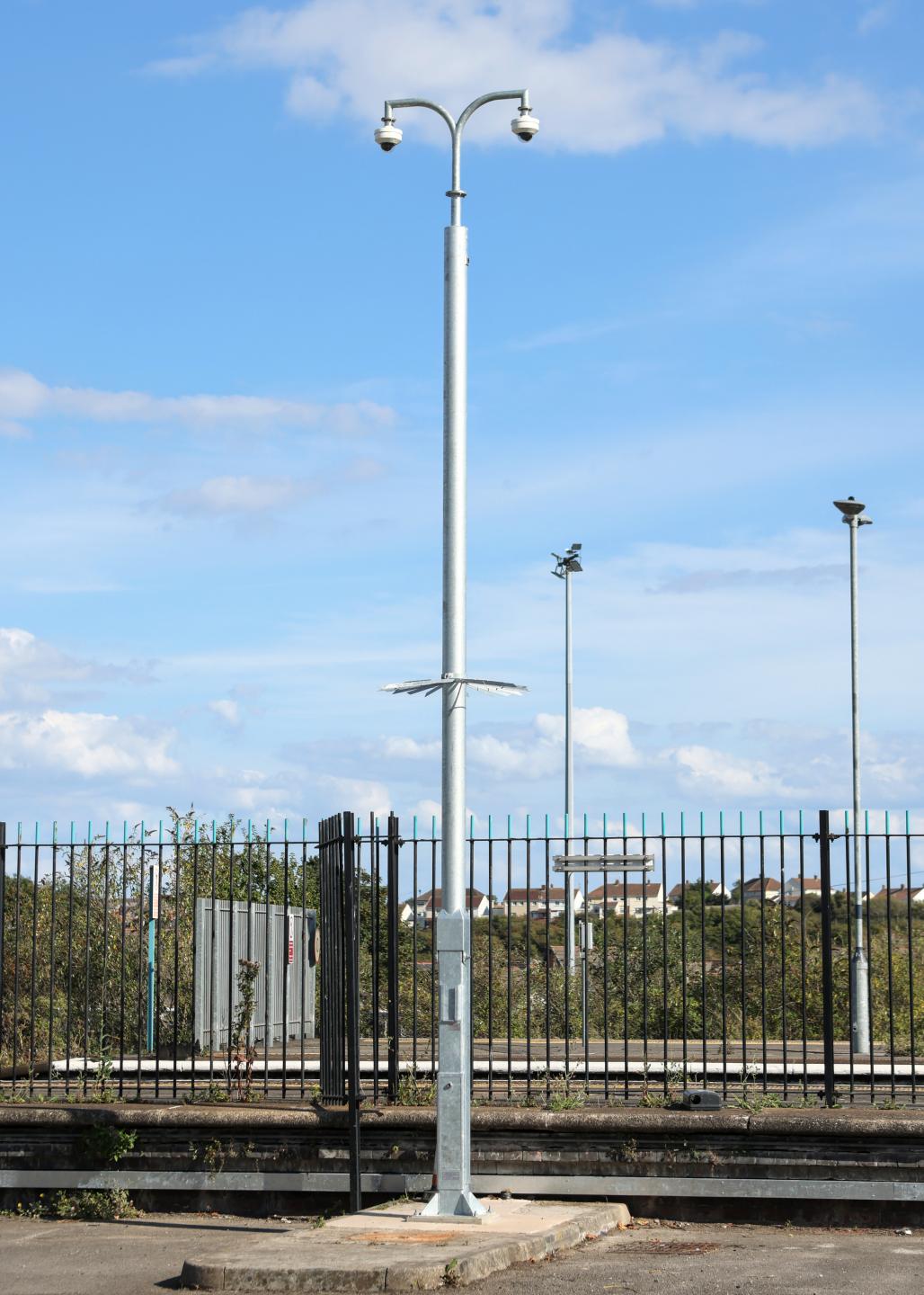

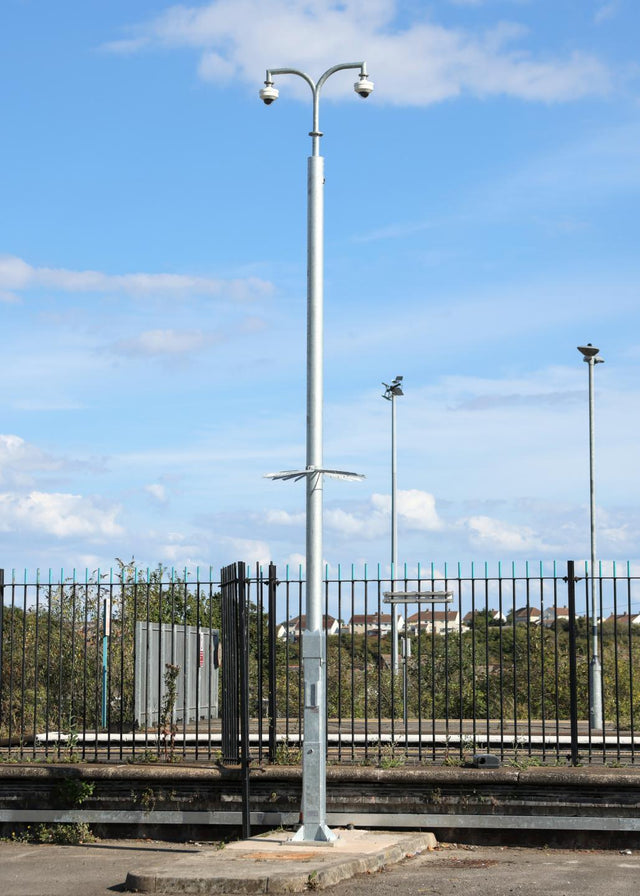

Altron AW1859/6 Tilt-Down Tubular CCTV Pole, 6m Height, Max 30kg Equipment at Pole Top
About this product
The Altron AW1859/6 is a 6 m tubular tilt-down CCTV pole from the AW1859 range, a heavier duty product suitable for medium to heavy PTZ applications. It is suitable for installations where the public have access, while tilting down lets camera equipment be serviced at ground level; it takes a max equipment weight of 30 kgs at the pole top.
Key features
- Height 6 m
- Max equipment weight at pole top 30 kgs; max equipment surface area 0.40 m2
- Camera equipment can be serviced at ground level
- Close fitting, flush compartment doors with heavy duty secure locks and a treated backboard
- Demountable winch (winch part number DW1000/59)
- Constructed in high tensile steel and hot dip galvanised after fabrication for durability
- Option of painting over the galvanised finish in BS and RAL colours
Frequently asked questions
How tall is the AW1859/6?
The AW1859/6 has a height of 6 m.
How much camera equipment can it carry?
The max equipment weight at pole top is 30 kgs, with a max equipment surface area of 0.40 m2.
How is the camera serviced?
The pole tilts down, enabling camera equipment to be serviced at ground level. It uses winch part number DW1000/59, and the rear clearance needed when tilting (F) is 1350 mm.
What is it made from?
It is constructed in high tensile steel and hot dip galvanised after fabrication for durability, with the option of painting over the galvanised finish in BS and RAL colours.
How much does the pole weigh?
The product weight is 170 kgs.
Can options be added?
Yes, by adding a suffix to the part number: for example AW1859/6/AC/HS for an access cover plate with cable restraining bar and high security lock. Embedded base (/EB) poles are made to order, for example AW1859/6/EB.
Specifications
Specifications
| Brand | Altron |
|---|---|
| Model | AW1859/6 |
| Manufacturer Part Number (MPN) | AW1859/6 |
| Height | 6 m |
| Max equipment weight at pole top | 30 kgs |
| Max equipment surface area | 0.40 m2 |
| Pole ØB | 139 mm |
| Post size D2 | 150 mm |
| Post height C | 1700 mm |
| Pole rear clearance when tilting F | 1350 mm |
| Door aperture H x W | 500x110 mm |
| Winch part number | DW1000/59 |
| Product weight | 170 kgs |
| Construction | High tensile steel, hot dip galvanised after fabrication |
| Galvanising | Hot dipped galvanising after fabrication to ISO 1461 |
| Design | Design analysis in accordance with ILE TR7, BS6399 and BS8100 |
| Backboard | Supplied as standard |
