B-Tech BT8380-EXTV/S column extension kit, Silver
About this product
Please note: this is a non-returnable item (excluding faulty goods)
B-Tech BT8380-EXTV/S is a column extension kit.

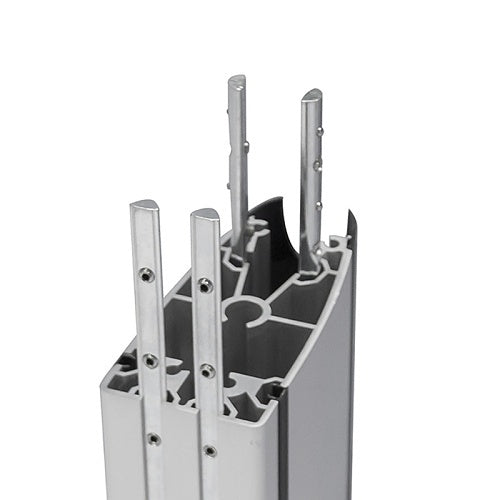

The BT8380-EXTV is an extension kit designed to extend vertical columns to a desired height, perfect for creating extra tall video walls and other digital signage installations. The kit consists of 4 steel joining bars which fit into the Channels inside the column. The joining bars are then held firmly together using the internal grub screws and hex bolts.
The underside of the joining bars feature spring-loaded bearings which allows the bars to move easily into their fixed position.
Key features
- Combines BT8380 Vertical Support Columns to create taller installs
- Spring-loaded bearings allow the joining bars to move easily into position
- Columns slide easily into position to create a seamless join
- Securely lock the columns in place using the internal grub screws
- Includes 2 bars with hex bolts to make rear assembly quicker
- TUV Certified
If you are matching this to an existing installation, work from the BT8380-EXTV/S part number rather than the description.
-
Download
- BT8380-EXTV/S — Product Manual
Specifications
Certifications
Physical characteristics
Miscellaneous
Attributes
Specifications
| Brand Name | B-Tech |
|---|---|
| Manufacturer Part Number | BT8380-EXTV/S |
| Product Type | Column Extension Kit |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE Compliant | Compliant |
Physical characteristics
| Colour | Silver |
|---|---|
| Material | Steel |
Miscellaneous
| Compatibility | Taller Installs |
|---|
Attributes
| Compatibility | Taller Installs |
|---|
