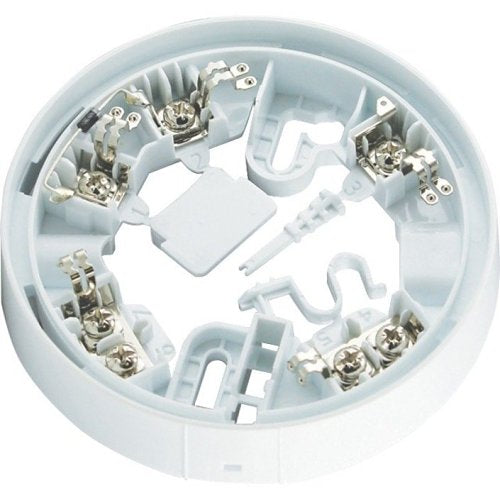

C-TEC C4408 activ non-diode base, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC C4408 is an activ non-diode base from the Activ range.
Discover the C-TEC C4408 ActiV Non-Diode Base, a top-tier component certified to EN54 standards, ensuring compatibility with all ActiV detectors. This base is designed for ease of installation, offering ample working space and a versatile ceiling mount that supports any orientation. Its innovative features include a 360° LED indicator for clear visibility, a secure detector/base locking mechanism, and a simple 'click and twist' assembly.
Additionally, it boasts remote LED terminals for optional connections and can handle fire-rated cables up to 2.5mm in diameter. Ideal for use with C-TEC's full range of conventional smoke and heat detectors, the C4408 base enhances safety and functionality in any setting.
Key features
- Third-party certified to the relevant parts of EN54 in conjunction with our ActiV detectors
- Easy to fit with lots of working space
- Can be ceiling mounted in any orientation due to the true 360° degree viewing angle of the LED indicator strips on all ActiV detectors
- Integrated detector/base locking mechanism, head removal tool and ID tag
- Simple ‘click and twist’ design
- Remote LED terminals for the optional connection to a BF318 Remote indicator
- Bright tin plated steel terminals can accept fire rated cable of up to 2.5mm in diameter
- C4408D diode and C4408 non-diode bases available*
- Compatible with C-TEC’s entire range of ActiV conventional smoke and heat detectors
If you are matching this to an existing installation, work from the C4408 part number rather than the description.
Specifications
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | C4408 |
| Product Series | Activ |
| Product Type | Smoke Detector Base |
Technical information
| Device Supported | Smoke Detector |
|---|
Certifications
| CE marking | Yes |
|---|---|
| Certifications & Standards | CE |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 20.50mm |
| Material | PC |
| Weight | 55.00g |
| Width | 102.20mm |
Product information
| Mount Type | Ceiling Mount |
|---|
Miscellaneous
| Compatibility | C-TEC's entire range of ActiV fire detectors |
|---|---|
| Environmental certification | CE |
| Environmental status | Yes |
Attributes
| Compatibility | C-TEC's entire range of ActiV fire detectors |
|---|---|
| Device Supported | Smoke Detector |
| Features | LED Indicator |
| Weight | 55.00g |
