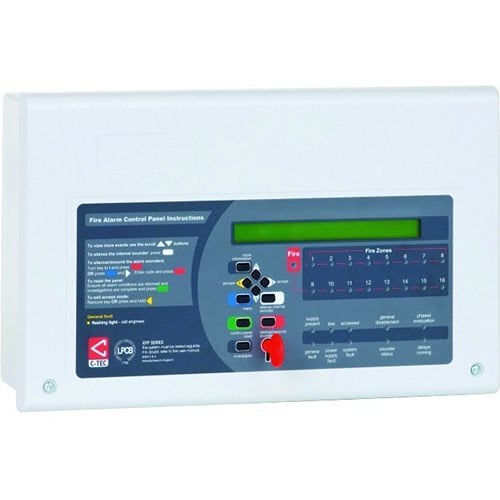

C-TEC XFP501E/H addressable fire panel, Silver

Visit C-TEC Fire Panels
Free Delivery
£ 445 75
(Incl. VAT) RRP: £534.90
Save £89.15

About this product

C-TEC XFP501E/H is an addressable fire panel from the XFP range.

LPCB certified to EN54 parts 2 & 4, it is supplied in an attractive flush or surface mountable plastic enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Hochiki's ESP protocol. Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe's best-selling entry-level addressable fire panels. Packed full of engineering features - some of which are not available on more expensive alternatives - the XFP501E/H is also fully compatible with C-TEC's Hush Button fire alarm solution.

Key features

  • Third-party certified to EN54-2/4 by the Loss Prevention Certification Board (LPCB).
  • Compatibility with Apollo’s XP95/Discovery protocol.
  • Two independently programmable conventional sounder circuits.
  • Two programmable inputs.
  • A fault output relay and three programmable relay outputs with voltage free changeover contacts.
  • A selection of zone dependency/coincidence functions.
  • A day/night (building occupied/unoccupied) function.
  • An investigation delay period function.
  • Phased evacuation facility.

If you are matching this to an existing installation, work from the XFP501E/H part number rather than the description.

£ 445 75
RRP: £534.90 Save £89.15
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£445.75 Incl. VAT £534.90
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
C-TEC
Manufacturer Part Number
XFP501E/H
Product Series
XFP
Product Type
Fire Alarm Control Panel
Technical information
Connectivity Technology
Wired
Number of Events Log
999
Number of Relays Supported
4
Number of Standard Zones
16
Panel Control Type
Addressable
Physical characteristics
Colour
Silver
Weight
1.80kg
Miscellaneous
Additional Information
Certified to EN54-2/4 by the LPCB (0832-CPD-0772). Protocol/compatibility Hochiki ESP. Mains supply 230V 50/60Hz. Mains rated current 350mA maximum. Internal power supply 27Vdc nominal.
Attributes
Weight
1.80kg
Additional Information
Certified to EN54-2/4 by the LPCB (0832-CPD-0772). Protocol/compatibility Hochiki ESP. Mains supply 230V 50/60Hz. Mains rated current 350mA maximum. Internal power supply 27Vdc nominal.
Specifications
Technical information
Physical characteristics
Miscellaneous
Attributes

Specifications

Brand Name C-TEC
Manufacturer Part Number XFP501E/H
Product Series XFP
Product Type Fire Alarm Control Panel

Technical information

Connectivity Technology Wired
Number of Events Log 999
Number of Relays Supported 4
Number of Standard Zones 16
Panel Control Type Addressable

Physical characteristics

Colour Silver
Weight 1.80kg

Miscellaneous

Additional Information Certified to EN54-2/4 by the LPCB (0832-CPD-0772). Protocol/compatibility Hochiki ESP. Mains supply 230V 50/60Hz. Mains rated current 350mA maximum. Internal power supply 27Vdc nominal.

Attributes

Weight 1.80kg
Additional Information Certified to EN54-2/4 by the LPCB (0832-CPD-0772). Protocol/compatibility Hochiki ESP. Mains supply 230V 50/60Hz. Mains rated current 350mA maximum. Internal power supply 27Vdc nominal.

C-TEC XFP501E/H addressable fire panel

C-TEC XFP501E/H addressable fire panel, Silver

Who this is for

For the installer — this is the addressable fire panel supplied under C-TEC part number XFP501E/H. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is an addressable fire panel made by C-TEC. The part number XFP501E/H is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this addressable fire panel is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is returnable under our standard returns terms. Faulty goods are handled separately and are never affected by a returns restriction.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact addressable fire panel I have been quoted? Check the manufacturer part number XFP501E/H against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against XFP501E/H answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.

C-TEC XFP501E/H addressable fire panel
C-TEC

C-TEC XFP501E/H addressable fire panel, Silver

£445.75 £534.90

C-TEC XFP501E/H is an addressable fire panel from the XFP range.

LPCB certified to EN54 parts 2 & 4, it is supplied in an attractive flush or surface mountable plastic enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Hochiki's ESP protocol. Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe's best-selling entry-level addressable fire panels. Packed full of engineering features - some of which are not available on more expensive alternatives - the XFP501E/H is also fully compatible with C-TEC's Hush Button fire alarm solution.

Key features

If you are matching this to an existing installation, work from the XFP501E/H part number rather than the description.
