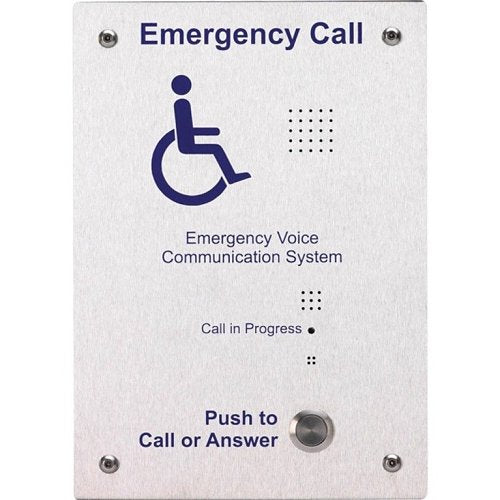

C-TEC EVC302F fire alarm communicator, Silver
About this product
C-TEC EVC302F is a fire alarm communicator.
Discover the C-TEC EVC302F, a hands-free, flush mount outstation crafted from high-quality brushed stainless steel. This Type B disabled refuge outstation is an essential component of C-TEC's SigTEL emergency voice communication system. It enables clear, true duplex communication between anyone in a refuge area and the SigTEL Master Controller with just a simple button press.
The unit features a 'Push to Call or Answer' button, a 'Call in Progress' LED, a buzzer, a microphone, and a loudspeaker. Additionally, it offers connections for an optional induction loop and a general-purpose output that activates upon use. Compliant with BS 5839-9 standards, this outstation ensures reliability and safety in critical situations.
Enhance your emergency communication setup today with the EVC302F!
Key features
- An attractive Type B disabled refuge outstation.
- Stylishly finished in high-guality, brushed stainless steel.
- Suitable for use with C-TEC's SigTEL disabled refuge / emergency voice communication system.
- Allows anyone located in a disabled refuge area to communicate with a SigTEL Master Controller at the touch of a button (and vice versa).
- Offers true duplex speech.
- Features a 'Push to Call or Answer' button, a 'Call in Progress' LED, buzzer, microphone and loudspeaker.
- Includes connections for an optional induction loop system and a general-purpose open collector output that closes on activation of the unit.
- Meets and exceeds the requirements of BS 5839-9 when correctly installed.
If you are matching this to an existing installation, work from the EVC302F part number rather than the description.
Specifications
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | EVC302F |
| Product Type | Fire Alarm Communicator |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Silver |
|---|---|
| Depth | 53.00mm |
| Height | 250.00mm |
| Material | Stainless Steel |
| Width | 175.00mm |
Product information
| Mount Type | Flush Mount |
|---|
Miscellaneous
| Compatibility | SigTEL Master Controller |
|---|---|
| Environmental certification | CE |
| Environmental status | Yes |
Attributes
| Compatibility | SigTEL Master Controller |
|---|
