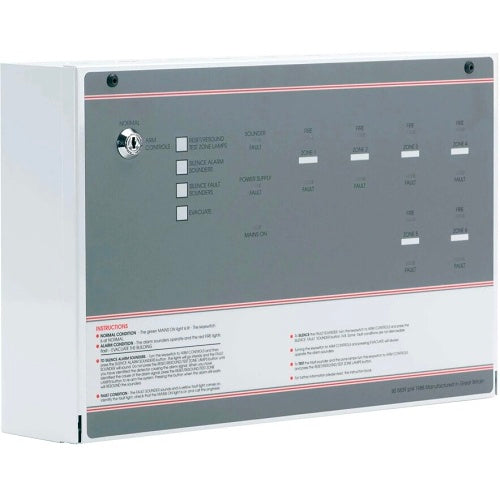

C-TEC FF386-2/C-TEC fire alarm panel
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC FF386-2/C-TEC is a fire alarm panel from the FP range.
The C-Tec FF386-2/C-TEC FP 6-Zone Conventional Fire Alarm Panel is designed for robust and efficient fire detection across six conventional zone circuits. The panel includes two conventional sounder circuits and provides separate indicators for open and short circuit faults, sounder faults, and battery or power supply faults. Additional functionalities include non-latching class change sounder output, latching fire, and non-latching fault outputs through an optional expansion loom, as well as short circuit=fire facility selectable per zone.
Ancillary connections support repeaters and various system add-ons, with space for two 12V 3.2Ah VRLA batteries, and multi-lingual variants are available subject to quantities.
Key features
- Installer-friendly design.
- Robust metal enclosure c/w lift off lid andamp- heavy-duty base connections.
- Six conventional Zone circuits.
- Two conventional Sounder circuits.
- Separate indicators for open andamp- short circuit fault, sounder fault and battery/power supply fault.
- Non-latching class change sounder output, latching fire andamp- non-latching fault outputs (via optional expansion loom).
- Short circuit=fire facility (pre-1980 BS, no resistors in call points, selectable on a zone by zone basis).
- Ancillary connections for repeaters and other system add-ons including fault relay modules, fire relay modules, sounder delay relay modules, sounder extender kits, etc).
- Multi-lingual variants (subject to quantities).
- Space for 2 x 12V 3.2Ah VRLA batteries.
If you are matching this to an existing installation, work from the FF386-2/C-TEC part number rather than the description.
Specifications
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | FF386-2/C-TEC |
| Product Series | FP |
