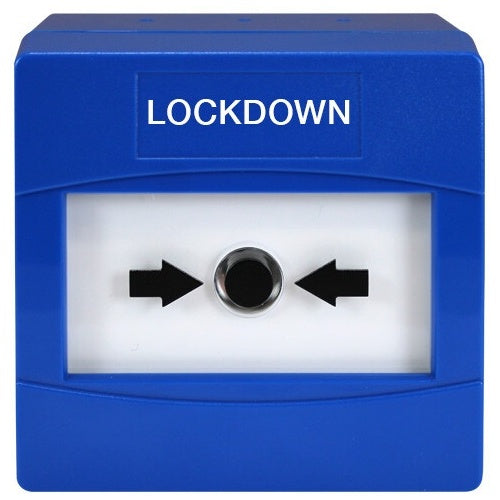

C-TEC CA470B/LD fire call point
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC CA470B/LD is a fire call point.
Can be used to signal an incident has occurred that requires a lockdown procedure to be initiated. Finished in high-quality blue ABS plastic. For use with C-TEC's XFP and ZFP 'CAST' protocol Addressable Fire Panels.
Surface mountable. Includes an onboard short-circuit loop isolator. Smooth-action resettable element mimics the feel of breaking glass.
Supplied with reset/back box removal key and 'Not in Use' label. LED 'alarm ring' illuminates call point face upon activation. Photoluminescent operating window remains visible for up to 5min.
5mA typical alarm current (370A typical quiescent at 22-40VDC).
Key features
- Onboard short-circuit loop isolator
- Smooth-action resettable element mimics the feel of breaking glass
- LED 'alarm ring' illuminates call point face upon activation
- Photoluminescent operating window remains visible for up to 5min
If you are matching this to an existing installation, work from the CA470B/LD part number rather than the description.
Specifications
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CA470B/LD |
