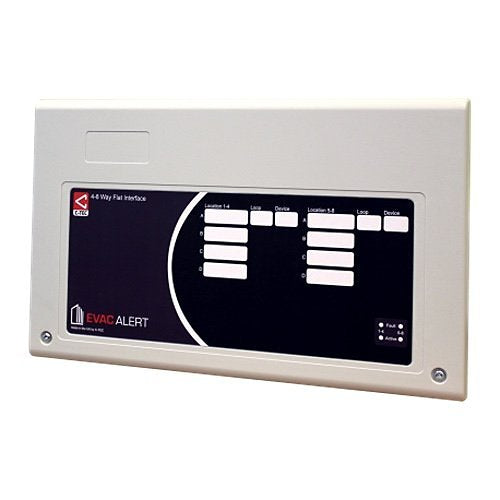

C-TEC CA737 interface unit, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC CA737 is an interface unit.
Discover the efficiency of the C-TEC CA737 Four-Eight-Way Flat Interface Unit, a vital component for your C-TEC EVAC-ALERT system. This loop-powered interface can be expanded from four to eight ways with the addition of a CA737PCB. It offers four or eight monitored 12.5mA sounder circuits, capable of powering up to two self-testing evacuation alert sounders per flat.
Additionally, it features an onboard short circuit loop isolator for enhanced safety. Ideal for ensuring robust and reliable alert systems in residential buildings.
Key features
- A loop-powered 4-8 way flat interface for use on a C-TEC EVAC-ALERT system
- Provides 4 or 8 monitored 12.5mA sounder circuits to power up to 2 self-testing evacuation alert sounders per flat.
- Includes an onboard short circuit loop isolator
If you are matching this to an existing installation, work from the CA737 part number rather than the description.
-
Download
- CA737 — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CA737 |
| Product Type | Interface Unit |
General information
| Application/Usage | Alarm System |
|---|
Technical information
| Device Supported | Voice Evacuation System |
|---|
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 96.00mm |
| Height | 235.00mm |
| Weight | 1.50kg |
| Width | 380.00mm |
Power description
| Input Voltage | 18-40V DC |
|---|
Miscellaneous
| Additional Information | Operating conditions/temperature: -10oC to +55oC. IP Rating: IP30. Alarm current: Max. 12.5mA per circuit (optional 24V 1A CA737PSU available to boost alarm current across all circuits) Quiescent current: |
|---|---|
| Compatibility | C-TEC EVAC-ALERT System |
| Environmental certification | CE |
| Environmental status | Yes |
| Features | Flush Mount, LED Indicator, Surface Mount |
Attributes
| Compatibility | C-TEC EVAC-ALERT System |
|---|---|
| Device Supported | Voice Evacuation System |
| Input Voltage | 18-40V DC |
| Weight | 1.50kg |
| Additional Information | Operating conditions/temperature: -10oC to +55oC. IP Rating: IP30. Alarm current: Max. 12.5mA per circuit (optional 24V 1A CA737PSU available to boost alarm current across all circuits) Quiescent current: |
