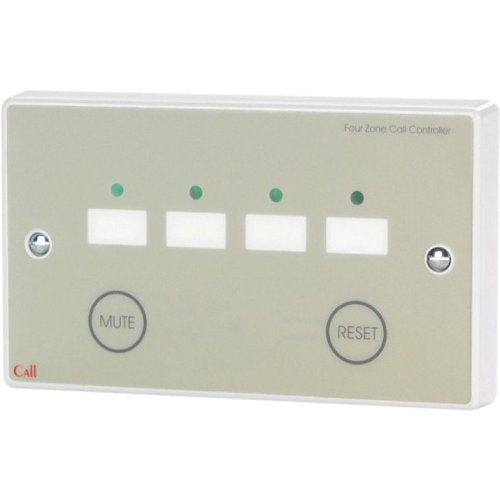

C-TEC NC944 nurse call controller
About this product
C-TEC NC944 is a nurse call controller from the 800 range.
The NC944 is a four zone call controller which is compatible with virtually all 800 Series call points, ceiling pulls, overdoor lights, infra-red receivers and remote sounders. Supplied on a double gang plate, the unit includes an onboard buzzer, four zonal alarm LEDs, a 'MUTE' button and a 'RESET' button, plus a number of special function outputs.
Key features
- Capable of indicating standard and emergency calls
- Reset button and relay
- 12V 250mA power supply inc
If you are matching this to an existing installation, work from the NC944 part number rather than the description.
Specifications
Certifications
Physical characteristics
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | NC944 |
| Product Series | 800 |
| Product Type | Annunciator Panel |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE Compliant | Compliant |
Physical characteristics
| Depth | 21.00mm |
|---|---|
| Height | 87.00mm |
| Weight | 128.00g |
| Width | 146.00mm |
Power description
| Input Voltage | 12V |
|---|
Miscellaneous
| Additional Information | c/w mute/reset button, requires 12V PSU |
|---|---|
| Compatibility | C-TEC's entire range of 800 Series Call System components |
| Environmental certification | CE |
Attributes
| Compatibility | C-TEC's entire range of 800 Series Call System components |
|---|---|
| Environmental status | Yes |
| Input Voltage | 12V |
| Weight | 128.00g |
