C-TEC APXM pin microphone plate

Visit C-TEC Products
£ 51 45
(Incl. VAT) RRP: £61.74
Save £10.29

About this product

Please note: this is a non-returnable item (excluding faulty goods)

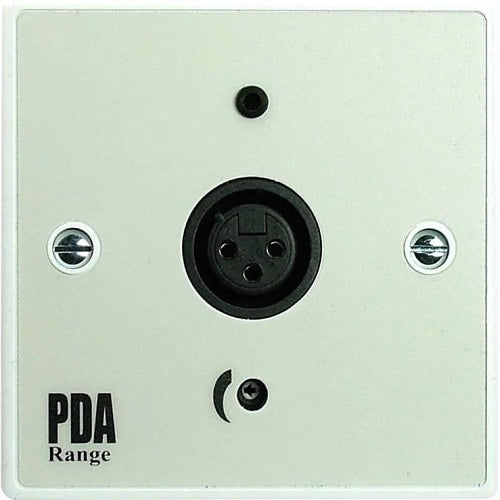

C-TEC APXM is a pin microphone plate.

The Outreach Plate audio input extension system comprises a range of wall, ceiling and desk mountable plates specifically designed to increase the audio input capability of any audio system. Covering the most common variants of audio connectors, they work by mixing the signals from various audio input sources into a single balanced line level input on a compatible amplifier. Each input plate features a built-in mixer, preamp, input level control and balanced output.

Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level connection with cable lengths up to 100m easily achievable using standard two-pair audio cable (i.e. Belden 8723). Each plate requires four wires; two balanced line (Line/A +, Line/A -), one ground (GND) and one power connection (V+ = 12-32V d.c.).

Most of C-TEC's PDA Range induction loop amplifiers are fitted with an Outreach connection socket as standard. For audio systems that do not have an Outreach socket, straightforward network connection can be achieved using an 'APV' 24V 250mA d.c. regulated power supply and an 'APXO' 3 pin XLR balanced line output plate.

Key features

  • Combines the functions of an APXM microphone Outreach plate and an APL dual phono Outreach plate in one double gang device.
  • Accepts balanced or unbalanced microphones with standard 3 pin XLR connectors AND dual phono line level inputs.
  • Counts as one of the total of ten plates permitted as part of C-TEC's patented'Outreach Plate' audio input extension system (see key features section below for details).

If you are matching this to an existing installation, work from the APXM part number rather than the description.

£ 51 45
RRP: £61.74 Save £10.29
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£51.45 Incl. VAT £61.74
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
C-TEC
Manufacturer Part Number
APXM
Product Type
Faceplate
General information
Application/Usage
Amplifier, Audio, Microphone
Packaged Quantity
1
Technical information
Number of Gangs
1
Certifications
CE marking
Yes
RoHS compliance
Compliant
WEEE compliance
Exempt
Physical characteristics
Depth
15.00mm
Height
85.00mm
Width
85.00mm
Miscellaneous
Environmental certification
CE
Attributes
Environmental status
Yes
Specifications
General information
Technical information
Certifications
Physical characteristics
Miscellaneous
Attributes

Specifications

Brand Name C-TEC
Manufacturer Part Number APXM
Product Type Faceplate

General information

Application/Usage Amplifier, Audio, Microphone
Packaged Quantity 1

Technical information

Number of Gangs 1

Certifications

CE marking Yes
RoHS compliance Compliant
WEEE compliance Exempt

Physical characteristics

Depth 15.00mm
Height 85.00mm
Width 85.00mm

Miscellaneous

Environmental certification CE

Attributes

Environmental status Yes

C-TEC APXM pin microphone plate

C-TEC APXM pin microphone plate

Who this is for

For the installer — this is the pin microphone plate supplied under C-TEC part number APXM. Specify it by that part number.

The entries in the specification table are the ones held against this part number. Anything not listed there is not stated by us, and should be confirmed against the manufacturer's own documentation.

In plain English: this is a pin microphone plate made by C-TEC. The part number APXM is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this pin microphone plate is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact pin microphone plate I have been quoted? Check the manufacturer part number APXM against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against APXM answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
