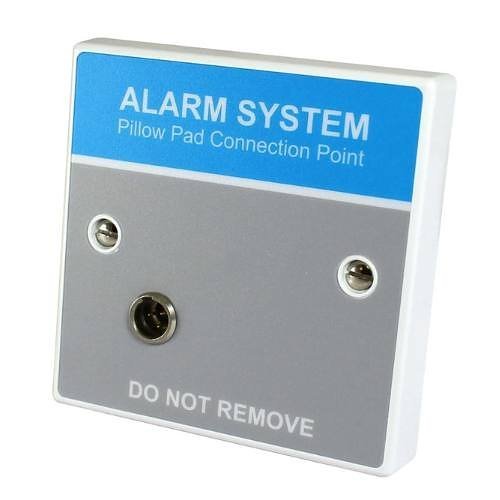

C-TEC BF320JP power socket, White
About this product
C-TEC BF320JP is a power socket.
The XLR Connector Plate, part no. BF320JP, allows the separately available BF320 Vibrating Pillow Pad to be connected to 24VDC. conventional fire alarm sounder circuits, 12VDC. systems, or C-TEC's EVAC Alert system. The BF320J is also compatible with other commonly available third-party vibrating pillow pads.
Key features
- Can be used in conjunction with a BF320 vibrating pillow padto warn the hearing impaired of a potential fire alarm or evacuation alert condition.
- Compatible with all C-TEC fire alarm and evacuation alert systems.
- Locking mini-XLR connector and plug arrangement helps prevent accidental pillow pad removal.
- Line monitored for disconnection via an internal 6k8Ω end of line resistor (selectable at the BF320JP).
- Selectable 6K8 (pillow pad) or 27K (jack socket) end of line monitoring options for fire alarm or evacuation alert system use.
- Can be used on systems with a 10-30V DC voltage range
- Fits on a standard UK 25mm back box.
- Supersedes our old BF364 jack socket.
If you are matching this to an existing installation, work from the BF320JP part number rather than the description.
-
Download
- BF320JP — Product Manual
Specifications
Physical characteristics
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | BF320JP |
| Product Type | Power Socket |
Physical characteristics
| Colour | White |
|---|---|
| Depth | 15.00mm |
| Height | 86.00mm |
| Material | PVC |
| Width | 86.00mm |
Product information
| Mount Type | Junction Box Mount |
|---|
Miscellaneous
| Additional Information | Supply/operating voltage: 10-30V DC Alarm current 65mA at 24V, 110mA 10V (when pressure pad connected). Application/operation Connects across a conventional fire alarm system's 24V DC sound |
|---|---|
| Compatibility | C-TEC's BF320 Vibrating Pillow Pad |
| Environmental certification | CE |
Attributes
| Compatibility | C-TEC's BF320 Vibrating Pillow Pad |
|---|---|
| Environmental status | Yes |
| Additional Information | Supply/operating voltage: 10-30V DC Alarm current 65mA at 24V, 110mA 10V (when pressure pad connected). Application/operation Connects across a conventional fire alarm system's 24V DC sound |
