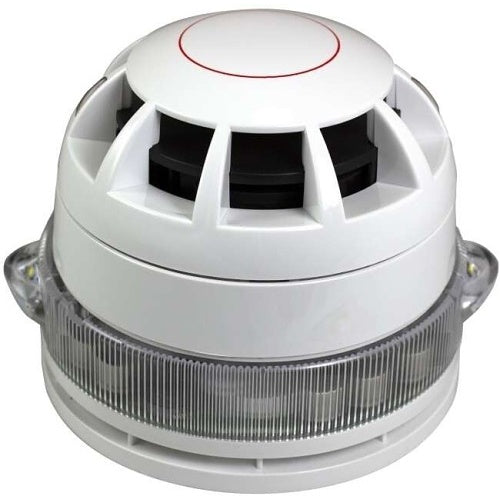

C-TEC CA457A/W sounder strobe, White
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC CA457A/W is a sounder strobe from the CAST range.
‘CAST’ is the world’s most-advanced ‘distributed intelligence’ fire alarm system protocol. Conceived, designed and realised by C-TEC, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels and field devices.
Key features
- Provides ‘C-3-8’ rated light distribution.
- Superb sound intelligibility.
- Onboard short-circuit loop isolator.
- Four selectable volume levels.
- Six selectable messages with tones (2 evacuate, 1 alert, 1 all clear andamp- 2 system test messages).
- 26.5mA typical alarm current (470µA typical quiescent current) at 27-40V DC (max volume andamp- brightness).
- Group addressing facility allows multiple devices to be operated simultaneously.
- Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use.
- IP21C rated.
- White ceiling fixing plate andamp- detector spur wires included.
If you are matching this to an existing installation, work from the CA457A/W part number rather than the description.
Specifications
Certifications
Physical characteristics
Miscellaneous
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CA457A/W |
| Product Series | CAST |
Certifications
| RoHS compliance | Compliant |
|---|---|
| WEEE compliance | Compliant |
Physical characteristics
| Colour | White |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
