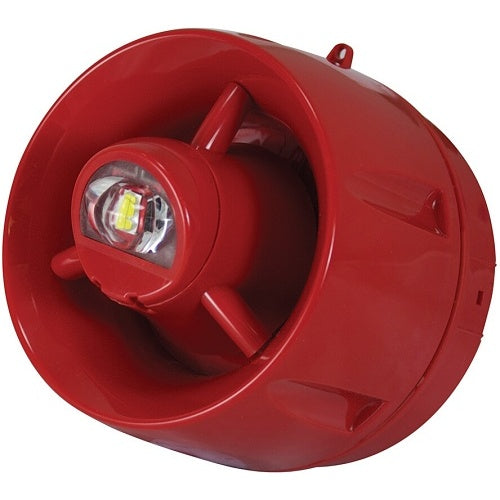

C-TEC BF433A/CX/SR wall sounder VAD
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC BF433A/CX/SR is a wall sounder VAD.
The C-Tec BF433A/CX/SR is an addressable wall sounder with VAD designed for effective alarm signalling. It is third-party certified to EN54-3, EN54-23, and EN54-17 by LPCB, ensuring compliance and reliability. The device provides 103dB(A) sound output at 1 meter and a ‘W-2.4-8.2’ light distribution when wall mounted, delivering minimum 0.4 lux across a 2.4m by 8.2m area.
It features an onboard short-circuit loop isolator, group addressing for simultaneous operation of multiple devices, and offers 7 selectable volume levels with up to 15 tone pairs. Rated IP21C (Type A), it operates on 24V DC with 550A quiescent current and 14.5mA alarm current when the VAD-lit sounder is active.
Key features
- Third-party certified to EN54-3 (Sounders) EN54-23 (VADs) and 17 (Isolators) by the LPCB
- Provides ‘W-2.4-8.2’ light distribution when wall mounted (min 0.4 lux over a 2.4m x8.2m cuboid area)
- Impressive 103dB(A) sound output 1m
- Onboard short-circuit loop isolator
- 550A quiescent current
- 14.5mA alarm current 24V DC (VAD lit sounder on max)
- Group addressing facility allows multiple devices to be operated simultaneously
- 7 selectable volume levels and up to 15 selectable tone pairs
- IP21C (Type A) rated
If you are matching this to an existing installation, work from the BF433A/CX/SR part number rather than the description.
Specifications
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | BF433A/CX/SR |
