C-TEC CA447A/DR wall VAD
About this product
Please note: this is a non-returnable item (excluding faulty goods)

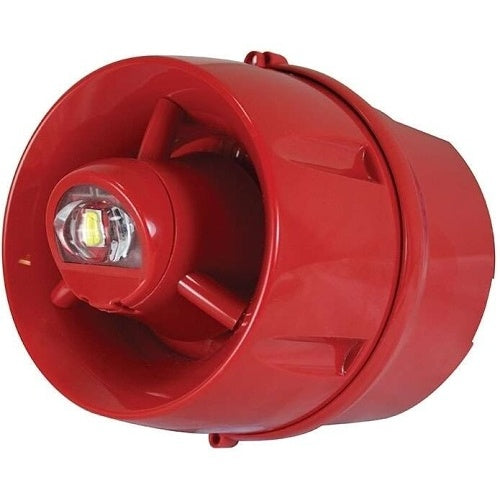

C-TEC CA447A/DR is a wall VAD from the CAST range.
CAST' is the world's most-advanced 'distributed intelligence' fire alarm system protocol. Conceived, designed and realised by C-TEC, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels and field devices.
Key features
- Superb sound intelligibility.
- Onboard short-circuit loop isolator.
- Four selectable volume levels
- Six selectable messages with tones.
- Provides ‘W-2.75-9’ or ‘W-4-4’ rated light distribution
- 26.5mA typical alarm current (470µA typical quiescent current) at 27-40V DC.
- Group addressing facility allows multiple devices to be operated simultaneously.
- IP33C rated.
- Custom messages and CAST Lockdown sounder VADs also available to special order
If you are matching this to an existing installation, work from the CA447A/DR part number rather than the description.
Specifications
Miscellaneous
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CA447A/DR |
| Product Series | CAST |
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
C-TEC CA447A/DR wall VAD
