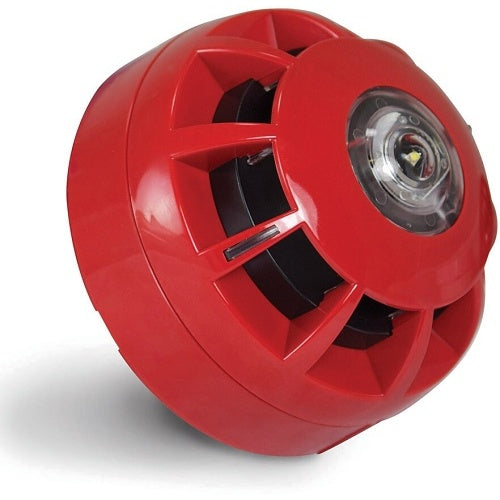

C-TEC CA458A/SR wall VAD
About this product
Please note: this is a non-returnable item (excluding faulty goods)
C-TEC CA458A/SR is a wall VAD from the CAST range.
CAST' is the world's most-advanced 'distributed intelligence' fire alarm system protocol. Conceived, designed and realised by C-TEC, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels and field devices.
Key features
- LPCB certified to EN54-17 andamp- 23 and Kiwa Telefication andamp- DBI certified to EN54-13.
- Also certified to the relevant parts of EN54 with Swedish certification body SBSC.
- Provides ‘W-3-3.1’ light distribution when wall mounted.
- Can also provide ‘C-3-8’ light distribution when ceiling mounted.
- Onboard short-circuit loop isolator.
- 7mA typical alarm current (460µA typical quiescent current) at 27-40V DC (VAD lit).
- Group addressing facility allows multiple devices to be operated simultaneously.
- IP21C rated
If you are matching this to an existing installation, work from the CA458A/SR part number rather than the description.
Specifications
Power description
Miscellaneous
Attributes
Specifications
| Brand Name | C-TEC |
|---|---|
| Manufacturer Part Number | CA458A/SR |
| Product Series | CAST |
Power description
| Input Voltage | 27-40V DC |
|---|
Miscellaneous
| Indoor or outdoor use | Indoor |
|---|
Attributes
| Input Voltage | 27-40V DC |
|---|
