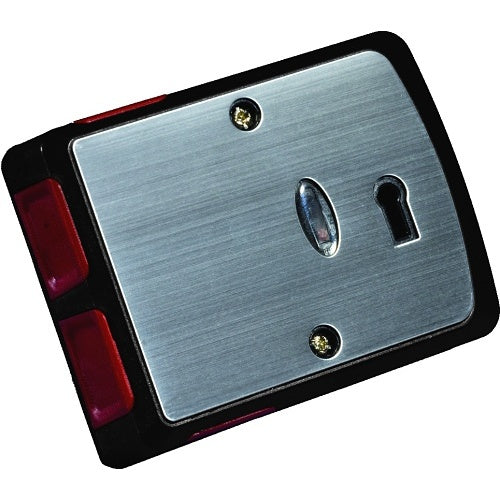

Knight Fire & Security PA4S panic button, Black
About this product
Knight Fire & Security PA4S is a panic button from the PA4 range.
PA4 is a Grade 3, 12VDC powered, confirmable PA for use in installations where accidental or false activations are a concern. In confirmable mode, either set of buttons will switch the first output, and the alternate set of buttons will switch the second output. This sequence is followed regardless of which set of buttons is pressed first, though there is a shunt option that maps each set to a specific output.
A fully activated unit can be reset with the included key. A partially activated unit can be reset this way too, or automatically via a 12-hour period of idle time. All wiring is done on a PCB fitted with 8x wire-clamping terminal blocks.
A sprung microswitch acts as the lid tamper, with a breakaway tamper to detect removal from the fitting surface. As the device is powered, a shunt option for a comfort/heartbeat LED is present for user reassurance. As well as a volt-free, resistorless, dry wiring option, PA4 also includes a variety of onboard resistors on both outputs that are selectable by shunt link:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
- 5k6/5k6
This specific model is black in colour with a stainless-steel fascia, made to suit similar building colour schemes.
Key features
- 8-Terminal
- Multi-Resistor
- Microswitch & Breakaway Tampers
- S/Steel Fascia
- Two-Stage Confirmable Alarm
- Made in UK
- Environmental Class II
If you are matching this to an existing installation, work from the PA4S part number rather than the description.
-
Download
- PA4S — Product Manual
Specifications
General information
Technical information
Certifications
Physical characteristics
Power description
Product information
Miscellaneous
Attributes
Specifications
| Brand Name | Knight Fire & Security |
|---|---|
| Manufacturer Part Number | PA4S |
| Product Series | PA4 |
| Product Type | Panic Button |
General information
| Application/Usage | Panic Alarm |
|---|
Technical information
| Button Size | 20.0mm |
|---|---|
| Connectivity Technology | Wired |
Certifications
| ATEX Compliant | No |
|---|---|
| CE marking | Yes |
| CNBOP Certified | No |
| Energy Star | No |
| INCERT Certified | No |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS compliance | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| VdS Certified | No |
| WEEE compliance | Compliant |
Physical characteristics
| Colour | Black |
|---|---|
| Material | Plastic, Stainless Steel |
Power description
| Input Voltage | 12V DC |
|---|
Product information
| Mount Type | Surface Mount |
|---|
Miscellaneous
| Environmental certification | Environmental Class II (Indoor Uncontrolled) |
|---|
Attributes
| Indoor or outdoor use | Indoor |
|---|---|
| Input Voltage | 12V DC |
