Knight Fire & Security PA2EWNL push panic button, White

Visit Panic & Personal Alarms
£ 8 61
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

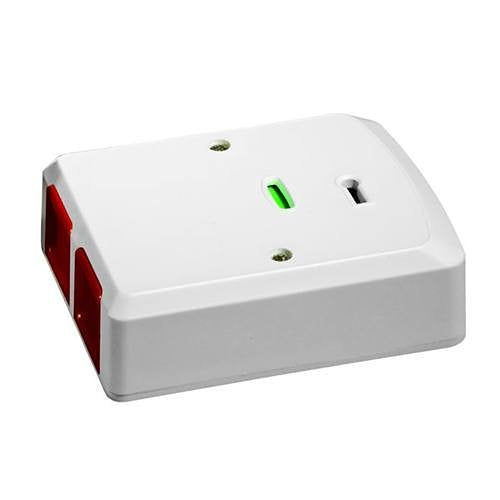

Knight Fire & Security PA2EWNL is a push panic button from the PA2 range.

A double end-push panic button suitable for Grade 3 installation. Accidental activation is prevented by the need to push both buttons simultaneously to trigger an alarm signal. When activated, an internal slide operates the microswitch and changes the flag indicator visible from the front of the unit.

This variant is non-latching – it will automatically reset when the buttons are released without needing a reset key. The internal PCB for this panic button features 4 wire-clamping terminal blocks for zone/tamper wiring, a breakaway back tamper, sprung microswitch lid tamper, and a 3-pin header that can be shunted to operate the button in NO or NC configuration.

Key features

  • 4-Terminal (2x Switch, 2x Tamper)
  • Non-Latching
  • NO/NC Configurable
  • Microswitch & Breakaway Tampers
  • Made in UK
  • Environmental Class II
  • Dimensions : 84mm x 65mm x 26mm
  • Environmental Class: 2
  • Non-Latching (no key required for reset)
  • White ABS

If you are matching this to an existing installation, work from the PA2EWNL part number rather than the description.

£ 8 61
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£8.61 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
PA2EWNL
Product Series
PA2
Product Type
Panic Button
General information
Application/Usage
Panic Alarm
Technical information
Button Size
20.0mm
Connectivity Technology
Wired
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
SBSC Certified
No
TIA Listed
No
VdS Certified
No
Physical characteristics
Colour
White
Depth
26.00mm
Height
84.00mm
Material
Plastic
Width
65.00mm
Product information
Contact Type
Closed Loop, Open Loop
Mount Type
Surface Mount
Miscellaneous
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Features
Dual Push, Rear Tamper
Indoor or outdoor use
Indoor
Attributes
Contact Type
Closed Loop, Open Loop
Specifications
General information
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number PA2EWNL
Product Series PA2
Product Type Panic Button

General information

Application/Usage Panic Alarm

Technical information

Button Size 20.0mm
Connectivity Technology Wired

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
SBSC Certified No
TIA Listed No
VdS Certified No

Physical characteristics

Colour White
Depth 26.00mm
Height 84.00mm
Material Plastic
Width 65.00mm

Product information

Contact Type Closed Loop, Open Loop
Mount Type Surface Mount

Miscellaneous

Environmental certification Environmental Class II (Indoor Uncontrolled)
Features Dual Push, Rear Tamper
Indoor or outdoor use Indoor

Attributes

Contact Type Closed Loop, Open Loop

Knight Fire & Security PA2EWNL push panic button

Knight Fire & Security PA2EWNL push panic button, White

Who this is for

For the installer — this is the push panic button supplied under Knight Fire & Security part number PA2EWNL. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a push panic button made by Knight Fire & Security. The part number PA2EWNL is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this push panic button is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact push panic button I have been quoted? Check the manufacturer part number PA2EWNL against your quote. That code is the only reliable identity for this item.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against PA2EWNL answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
