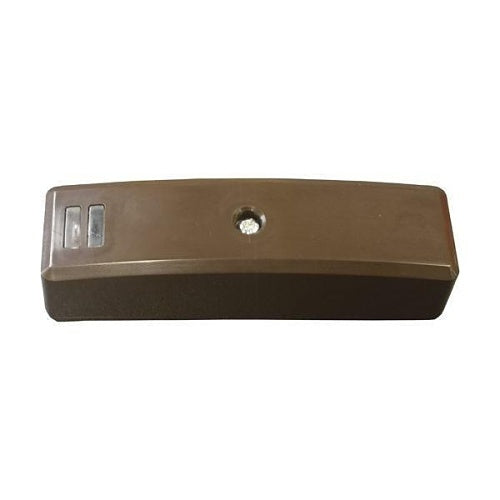

Knight Fire & Security SEISMO-ADVANCEB shock/tilt sensor, Brown

Visit Shock & Glass Break Detectors
£ 34 65
(Incl. VAT)

About this product

Please note: this is a non-returnable item (excluding faulty goods)

Knight Fire & Security SEISMO-ADVANCEB is a shock/tilt sensor from the SEISMO range.

SEISMO-ADVANCE is a shock/tilt sensor designed for Grade 3 installations. Operating at a standard nominal voltage of 12VDC, the following features can be configured on the PCB via shunt links: Detection mode (Shock, Tilt, Either, Both)

Pulse count (1, 2, 4, 6)

Comfort/heartbeat LED (on/off)

Shock/tilt LED feedback (on/off)

EOL resistors (1k, 2k2, 4k1, 4k7, 5k6)

Alarm resistors (1k, 2k2, 4k1, 4k7, 5k6, 6k8)

Fault resistors (2k2, 3k, 6k8, 12k)

High sensitivity (on/off)

Tamper protection is provided by a breakaway PCB section that detects removal from the fitting surface. A sprung microswitch detects removal of the product lid. The sensitivity of the unit is fine-tuned with an onboard potentiometer.

This unit has terminals for fault output – a mandatory feature for G3 installations. This output may be wired separately or incorporated into the EOL circuit so all signals use only two wires. A terminal is provided for wiring that allows the connected I&HAS to control the output of the LEDs – useful for enabling during walk testing and disabling otherwise.

A latch terminal is also present – this terminal allows the unit to signal via LEDs that it has alarmed when the system is unset. Both the LED control and latch terminals should be wired to a suitably programmed output in the I&HAS. Note: Due to restrictions in EN50131 regarding ancillaries with logic control and alarm status visibility, this sensor cannot be wired as part of a shared zone without compromising the security grade of the system.

Comes complete with fitting screws and extra shunt links.

Key features

  • Discrete Tilt & Vibration Detection
  • Fault Output
  • Multi-Resistor
  • LED Feedback
  • Microswitch & Breakaway Tampers
  • Made in UK
  • Environmental Class II
  • Pulse count selectable on board
  • Pulse count selectable via serial link
  • Vibration and surface / tilt detection selectable on board

If you are matching this to an existing installation, work from the SEISMO-ADVANCEB part number rather than the description.

£ 34 65
Ships from United Kingdom
28 days hassle free returns
Secure payment transactions
Price
£34.65 Incl. VAT
Add a WME Product Care Plan Includes warranty, replacement and repairs backed by WME
Why add a product care plan:
  • Full breakdown support
  • Full replacement if we can't repair your product within 10 days
  • All parts, labour and callouts included if necessary
  • Extended manufacturer warranty with faster turn arounds
  • Excludes accidental & cosmetic damages
By selecting one of these plans you agree to purchase WME Care Plan. Please read the Terms and Important information to ensure WME Care Plan is right for you. Compare prices of extended warranties for electrical goods at www.compareextendedwarranties.co.uk
WME Care
Info about this product
Technical Details
Specifications
Brand Name
Knight Fire & Security
Manufacturer Part Number
SEISMO-ADVANCEB
Product Series
SEISMO
Product Type
Shock/Tilt Sensor
General information
Application/Usage
Surface Monitoring
Technical information
Connectivity Technology
Wired
Certifications
ATEX Compliant
No
CE marking
Yes
CNBOP Certified
No
Energy Star
No
INCERT Certified
No
LPCB Certified
No
NF Certified
No
NF&A2P Certified
No
SBSC Certified
No
TIA Listed
No
VdS Certified
No
Physical characteristics
Colour
Brown
Depth
23.00mm
Height
25.00mm
Material
Plastic
Width
88.00mm
Product information
Mount Type
Surface Mount
Miscellaneous
Compatibility
Control Panels (Honeywell, Cooper, DSC, Europlex, Guardall, Inner Range), RISCO, Siemens
Environmental certification
Environmental Class II (Indoor Uncontrolled)
Indoor or outdoor use
Indoor
Attributes
Compatibility
Control Panels (Honeywell, Cooper, DSC, Europlex, Guardall, Inner Range), RISCO, Siemens
Specifications
General information
Technical information
Certifications
Physical characteristics
Product information
Miscellaneous
Attributes

Specifications

Brand Name Knight Fire & Security
Manufacturer Part Number SEISMO-ADVANCEB
Product Series SEISMO
Product Type Shock/Tilt Sensor

General information

Application/Usage Surface Monitoring

Technical information

Connectivity Technology Wired

Certifications

ATEX Compliant No
CE marking Yes
CNBOP Certified No
Energy Star No
INCERT Certified No
LPCB Certified No
NF Certified No
NF&A2P Certified No
SBSC Certified No
TIA Listed No
VdS Certified No

Physical characteristics

Colour Brown
Depth 23.00mm
Height 25.00mm
Material Plastic
Width 88.00mm

Product information

Mount Type Surface Mount

Miscellaneous

Compatibility Control Panels (Honeywell, Cooper, DSC, Europlex, Guardall, Inner Range), RISCO, Siemens
Environmental certification Environmental Class II (Indoor Uncontrolled)
Indoor or outdoor use Indoor

Attributes

Compatibility Control Panels (Honeywell, Cooper, DSC, Europlex, Guardall, Inner Range), RISCO, Siemens

Knight Fire & Security SEISMO-ADVANCEB shock/tilt sensor

Knight Fire & Security SEISMO-ADVANCEB shock/tilt sensor, Brown

Who this is for

For the installer — this is the shock/tilt sensor supplied under Knight Fire & Security part number SEISMO-ADVANCEB. Specify it by that part number.

The entries in the specification table are the ones held against this part number.

In plain English: this is a shock/tilt sensor made by Knight Fire & Security. The part number SEISMO-ADVANCEB is the manufacturer's own code for this exact version of it.

Similar-looking items in the same family often differ only by a suffix on that code. If you are replacing something, match the code rather than the picture.

Buying this in the UK

We are a UK supplier and this shock/tilt sensor is sold and shipped from the UK. Prices are shown in pounds sterling.

This item is non-returnable, excluding faulty goods. That restriction comes from the manufacturer's own terms for this line.

We do not quote a warranty term for this part. Every supplier-stated term we have checked against the manufacturer's own document has turned out to be wrong, so we would rather say nothing than say something we cannot stand behind.

Ask us and we will check it for you. Your statutory rights are unaffected.

Stock on this line moves, and lead times move with it. Ask us for the current position before you commit to a date on site.

Questions we get asked

Is this the exact shock/tilt sensor I have been quoted? Check the manufacturer part number SEISMO-ADVANCEB against your quote. That code is the only reliable identity for this item.

Is there a datasheet? Yes — the documentation attached to this listing was checked and names this exact part number. Documents that named only the family, or a different item, are not attached.

Can you check compatibility for us? Ask before you order and we will check it against the manufacturer's own documentation. We do not state compatibility that the record does not carry.

Why does the listing not answer every question? Because the specification held against SEISMO-ADVANCEB answers some questions and not others. We would rather leave a gap visible than fill it with something we cannot show you.

What if I order the wrong version? Tell us the installation you are matching and we will work back to the part number with you. That is a faster conversation than a return.

Do you hold this in stock? Availability on this line changes through the week, so the honest answer is to ask us on the day. We will give you the current position rather than a general one.
