Almost every ceiling rose in a UK home is wired "loop-in", which is why you open one up and find nine wires instead of the two you expected. Nothing has gone wrong. That's the design.
The rose is doing two jobs at once: it's the junction where the lighting circuit passes through on its way to the next light, and it's the connection point for the pendant hanging off it.
Once you can see those two jobs separately, the wiring stops looking like a bird's nest. That's what this guide does.
A word before we start, because it matters more here than anywhere else in the house.
1. The wire that will catch you out
In a loop-in ceiling rose there is a permanently live conductor that stays live even with the light switch off. Turning the switch off does not make the rose safe.
The only safe way in is at the consumer unit: isolate the lighting circuit, lock it off if you can, and prove it dead at the rose with a tester before you touch a terminal.
Trade Tip: in older installations the switched live is often a black or blue wire with a red or brown sleeve slipped over the end. That sleeve is the only thing telling you it's a live conductor and not a neutral. If somebody has lost the sleeve during a previous repair — and they frequently have — you have a black wire in a rose that is live when the switch is on and looks exactly like a neutral. Sleeve every switched live you find unsleeved, before you close the rose back up. It costs nothing and it's the single most useful thing you can do for whoever opens it next.

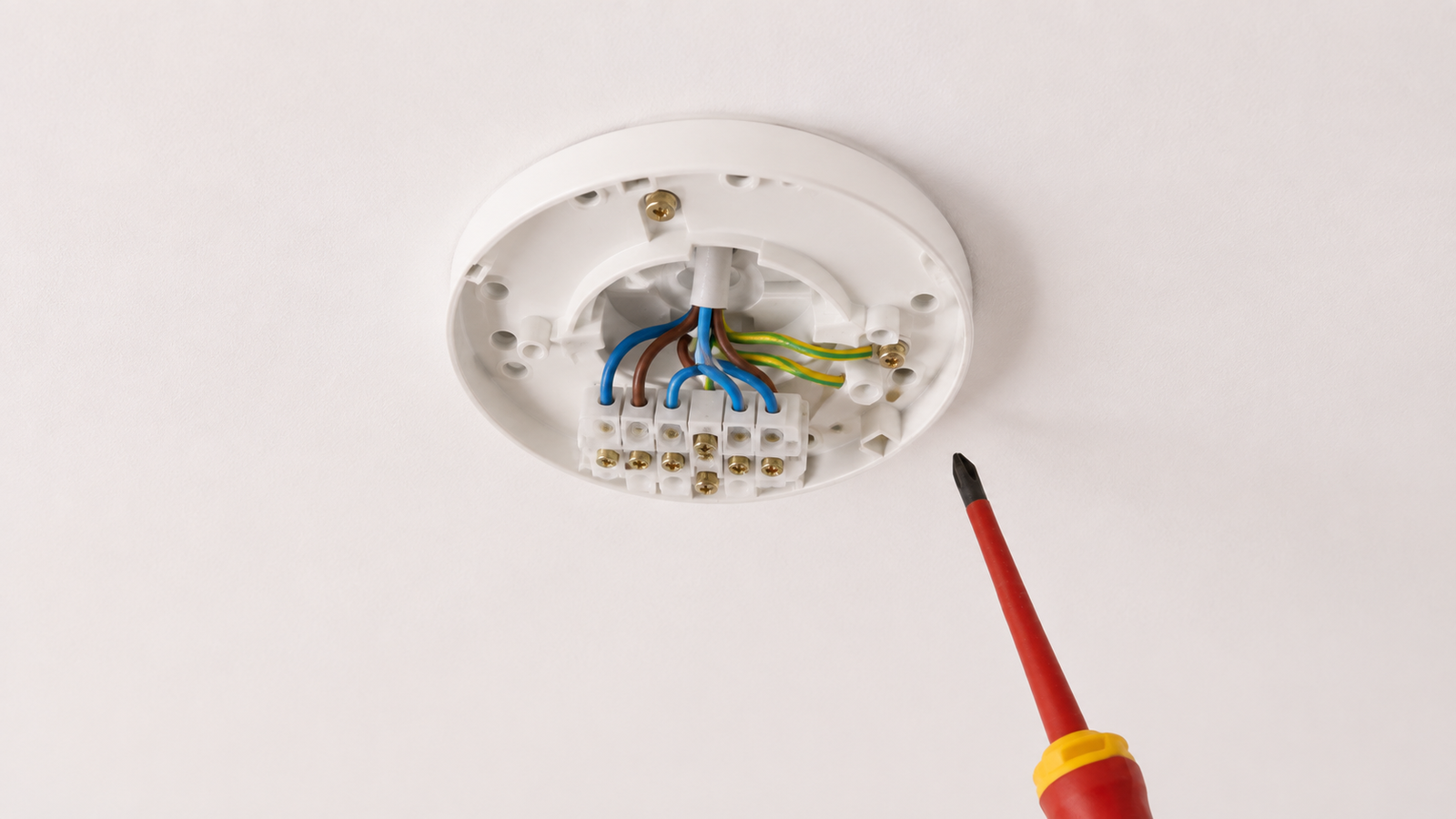

2. What each terminal actually does
A standard rose has three terminal banks. Left to right, as normally fitted:
- Neutral bank — the circuit neutrals arrive here, and the pendant's neutral joins them.
- Loop / permanent live bank — the circuit lives pass through here and carry on to the next light. Nothing from the pendant connects to this bank. It's the one that stays live.
- Switched live bank — the wire that goes down to the light switch and comes back. The pendant's live connects here, so the switch controls the lamp.
Earths go to the earth terminal. If your rose has no earth terminal, it's old, and a modern replacement with one is a sensible upgrade rather than an optional extra.
That's the whole logic. The loop bank keeps the circuit alive down the chain; the switched bank turns your lamp on and off.
The Knightsbridge SN8260 is the standard three-plate rose — integral terminal block, 2 x 1.5mm², Class II, white, IP20, 230V. It comes in a pack of 10, which sounds like a lot until you start a rewire and realise it isn't.
3. Replacing a rose without losing track of the wiring
The commonest way this job goes wrong is simple: everything comes out, and then nobody can remember what went where.
So don't rely on memory.
- Isolate at the consumer unit and prove dead at the rose.
- Photograph the terminals before you loosen anything. Two shots, straight on and slightly angled.
- Work one bank at a time. Move the neutrals across, tighten, then the loop, then the switched live. Never have more than one bank loose at once.
- Sleeve any unsleeved switched live while you're in there.
- Tug-test every conductor before the cover goes back on. A wire that looks seated and isn't is the classic intermittent fault.
Trade Tip: if the existing cable is old, brittle rubber or fabric-sheathed, stop. That's not a rose problem, it's a cable problem, and disturbing it will crack the insulation further back inside the ceiling where you can't see it. Rubber-insulated lighting cable is decades past its service life. Get an electrician to look at the circuit rather than the fitting.
4. Rose, batten holder, or pendant set?
Three different answers to "what goes on the ceiling", and they suit different jobs.
A ceiling rose is the wiring junction, with a pendant flex hanging from it. Standard for a hanging light.
A batten holder puts the lampholder directly against the ceiling — no flex, no drop. It's what you want in a loft, a garage, a cupboard, a cellar: anywhere a dangling pendant is just something to walk into.
The Knightsbridge SN8230 is the useful hybrid: a BC batten holder on a three-terminal ceiling rose base, 100W, white. You get proper loop-in terminals and a flush lampholder in one part. For a garage or utility ceiling it's the right answer more often than either pure option.
If you don't need the loop-in terminals — a straight replacement on an existing junction — the SN8200 is the plain three-terminal BC batten holder at 100W max, and the SN8210 is the short-skirt version rated 100W incandescent or 8W LED with a B22d cap.
A pendant set is the decorative route: flex, lampholder and rose supplied together, ready to hang.
The Knightsbridge 8271LBC is an E27 vintage pendant set in brushed chrome — 1.8m drop, 80W, pre-wired with its ceiling rose. The 8271LPB is the same set in polished brass. Pre-wired matters: it means the flex-to-rose connection is already made properly, which is the fiddliest part of hanging a pendant.
5. Watch the lamp rating, not just the lamp
Those pendant sets are rated 80W and the batten holders 100W. Those are maximum figures, and they exist because of heat at the lampholder, not because of the electricity bill.
With LED lamps you'll never get near them — a 60W-equivalent LED draws under 10W. But if somebody puts a genuine 150W incandescent in a fitting rated 100W, the holder cooks, the flex hardens, and it fails somewhere you can't see.
Check the rating on the fitting, not the brightness on the lamp box.
6. Where this stops being DIY
Swapping a like-for-like ceiling rose on a sound, modern, correctly-isolated circuit is a job a competent DIYer can do.
These are not that job, and each needs an electrician:
- Adding a new lighting point where there wasn't one
- Any rose with no earth terminal on a circuit you haven't had checked
- Rubber or fabric-insulated cable, in any condition
- A rose in a bathroom or shower room — that's a special location under Part P in England and Wales, and it needs certifying
- Anything where you open it up and the wiring doesn't match what's described here
That last one is the important one. If it doesn't look like the three banks above, don't guess your way through it — somebody has been in there before you, and you're now troubleshooting their work as well as doing your own.
Switch side rather than ceiling side? Our guide to changing a light switch covers that end of the same circuit.
Ceiling rose quick-reference
| Terminal bank | What connects | Live with switch off? |
|---|---|---|
| Neutral | Circuit neutrals + pendant neutral | No |
| Loop / permanent live | Circuit lives only — never the pendant | Yes |
| Switched live | Wire to the switch + pendant live | No |
| Earth | All circuit earths + fitting earth | No |
Expert Help in the West Midlands
We've been on Villa Road in Handsworth since 1975, and the trade counter is open to everyone — installers and householders alike.
If you've taken the cover off and what's inside doesn't match anything above, take a clear photo and bring it in. We've seen most of what previous owners have done to a lighting circuit, and two minutes looking at a picture will usually tell you whether it's a fitting swap or a job for a spark.
Browse ceiling roses, batten holders and pendant sets in Lamp Holders & Fittings.
Frequently asked questions
Why are there so many wires in my ceiling rose?
Because it's wired loop-in. The lighting circuit passes through the rose on its way to the next light, so you're seeing the incoming cable, the outgoing cable, the cable down to the switch and the pendant flex all landing in one fitting. Nine conductors in a rose is normal, not a fault.
Is a ceiling rose live with the light switch off?
Yes. The loop terminal bank stays permanently live so the circuit can continue to the next light. The switch only controls the switched live bank. Always isolate at the consumer unit and prove dead before working on one.
Can I replace a ceiling rose with a batten holder?
Yes, provided the replacement has the terminals your wiring needs. If the rose is wired loop-in, you need a batten holder with a three-terminal ceiling rose base rather than a plain one — otherwise you'll have nowhere to land the loop conductors.
